6.3.10. Logic Lock Regions Window

The Logic Lock Regions Window provides a summary of all Logic Lock regions defined in your design. Use the Logic Lock Regions Window to create, assign elements, and modify properties of a Logic Lock region.

Open the Logic Lock Regions Window in the Chip Planner by clicking View > Logic Lock Window, and in Intel® Quartus® Prime by clicking Assignments > Logic Lock Window.

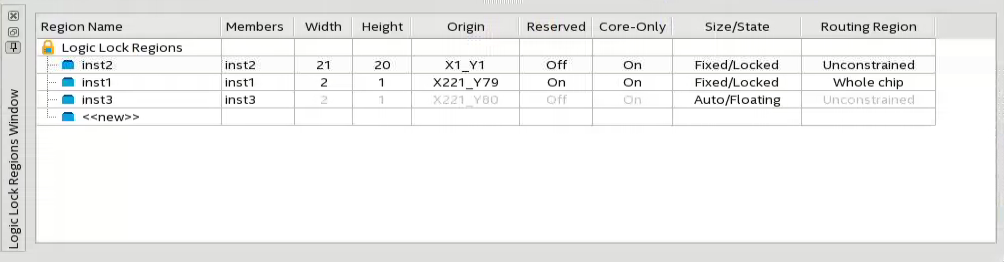

Figure 81.  Logic Lock Regions Window

You can customize the Logic Lock Regions Window by dragging and dropping the columns to change their order; you can also show and hide optional columns by right-clicking any column heading and then selecting the appropriate columns in the shortcut menu.

Logic Lock Regions Properties Dialog Box

Use the Logic Lock Regions Properties dialog box to view and modify detailed information about your Logic Lock region, such as which entities and nodes are assigned to your region, and which resources are required.

To open the Logic Lock Regions Properties dialog box, right-click the region and select Logic Lock Regions Properties....
