6.4.6. Clock Assignment Properties

The Clock Assignment Properties pane displays properties of the selected clock assignment.

By default, the Clock Assignment Properties pane appears on a tab at the right side of the Chip Planner.

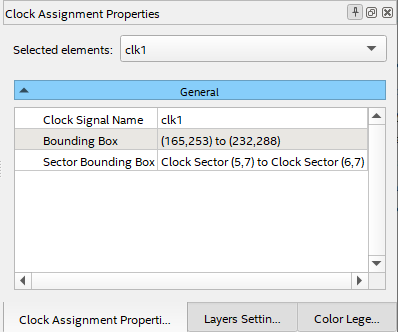

Figure 84. Clock Assignment Properties Pane
