1.5.9.4.2. Booting Linux* from the DXE Phase Using SD/MMC Manually

When you boot the Linux* zImage stored in QSPI Flash manually, the DXE phase boots until the UEFI shell appears and you type another command for further program execution. This can be done by typing the bootz command.

Note: This command runs the UEFI shell script <your_uefi_socfpga_directory>/uefi-socfpga/AlteraPlatformPkg/Applications/LinuxLoader/bootz.nsh which you copy into the FAT32 partition.

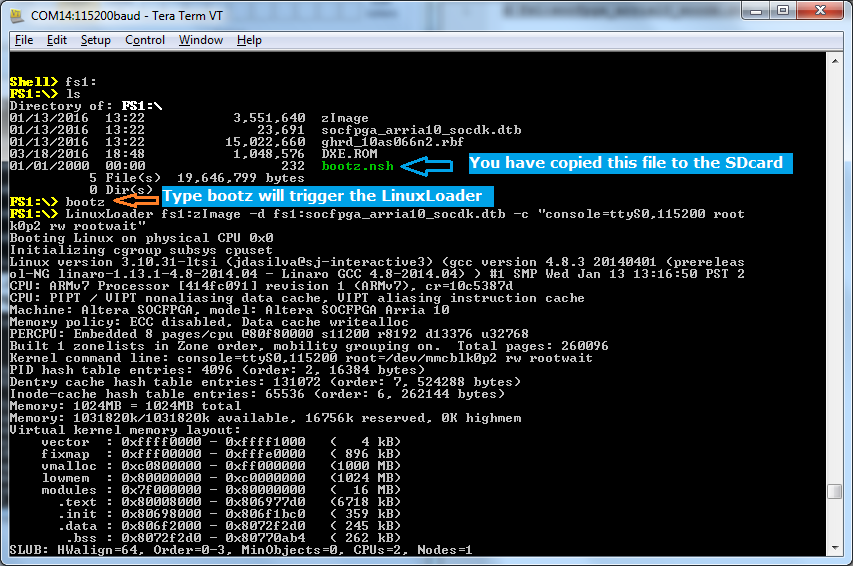

Figure 82.  bootz Command when Booting Linux from the DXE Phase
