1.5.6.1. Configuring the Board

This section presents the necessary board settings for running the UEFI boot loader on the Intel® Arria® 10 SoC FPGA development board.

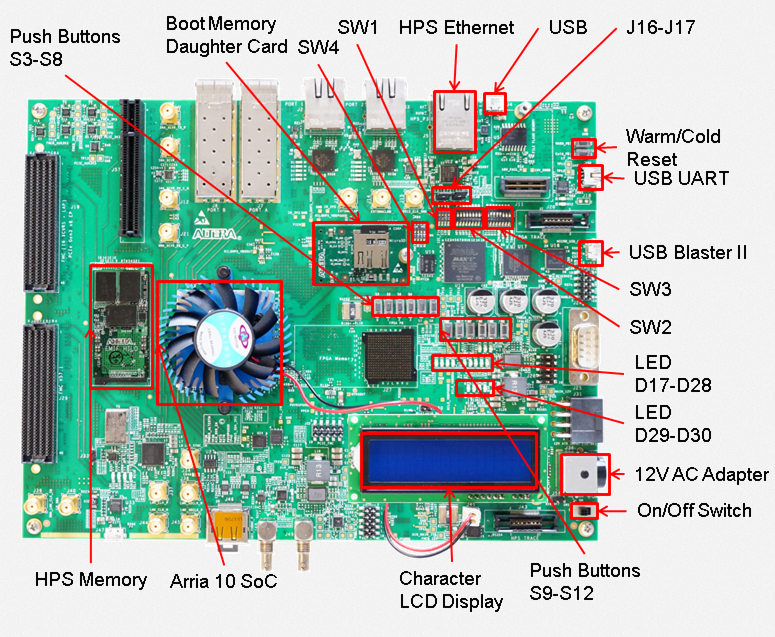

Figure 63.  Intel® Arria® 10 SoC FPGA Development Board

Confirm that the memories are installed in the following way:

  • A DDR4 memory card is installed on the HPS memory socket.
  • An SD boot card is installed on the boot flash socket.

Confirm that the board switches are configured as in the tables below:

Table 9.  Switch Configuration
Switch Type Required Setting Function
SW1 Settings
SW1.1 – I2C flag OFF

ON (0): System MAX5 is the I2C master.

OFF (1): HPS is the I2C master.

RevA.1 and RevA.2 Board
SW1.2 – factory_load ON

ON (0): Load the user design from flash at power up.

OFF (1): Load the factory design from flash at power up.
SW1.3 – msel1 ON

ON (up): MSEL[1] is 0.

OFF (down): MSEL[1] is 1.

SW1.4 – msel0 ON

ON (up): MSEL[0] is 0.

OFF (down): MSEL[0] is 1.

RevB.1 Board
SW1.2 – dc_power_ctrl ON

ON (0): Do not turn on FMC/PCIE power directly.

OFF (1): Turn on FMC/PCIE power directly.
SW1.3 – factory_load ON

ON (0): Load the user design from flash at power up.

OFF (1): Load the factory design from flash at power up.
SW1.4 – security_mode ON Reserved
SW2 Settings : ALL ON
SW3 Settings
SW3.1 – Arria10 OFF

ON – Arria10 JTAG Bypass

OFF – Arria10 JTAG Enable
SW3.2 – IO MAXV ON

ON – MAXV JTAG Bypass

OFF – MAXV JTAG Enable
SW3.3 – FMCA ON

ON – FMCA JTAG Bypass

OFF – FMCA JTAG Enable
SW3.4 – FMCB ON

ON – FMCB JTAG Bypass

OFF – FMCB JTAG Enable
SW3.5 – PCIE ON

ON – PCIE JTAG Bypass

OFF – PCIE JTAG Enable
SW3.6 – MSTR0 OFF See "Master Switch Settings" Table
SW3.7 – MSTR1 OFF
SW3.8 – MSTR2 OFF
SW4 Settings: ALL OFF (RevA.1 & RevA.2 Board)
SW4 Settings: (RevB.1 Board)
SW4.1 – reserve OFF -
SW4.2 – MSEL0 ON

ON=1

OFF=0
SW4.3 – MSEL1 OFF
SW4.4 – MSEL2 OFF
Table 10.  Master Switch Settings
MSTR[2] MSTR[1] MSTR[0] Master Selected
ON ON ON Boot
OFF ON ON FMCA (not implemented yet)
ON OFF ON FMCB (not implemented yet)
ON ON OFF FTRACE
OFF OFF OFF ON-BOARD UBII
ON OFF OFF MAXV A Programming Mode (only for advanced user)
OFF ON OFF GUI Mode
Confirm that the following jumpers are configured as follows:
  • Place jumpers on J16 and J17
  • Leave all other jumpers unplaced
