1.5.8.2.1. Automatically Loaded Peripheral RBF and Core RBF

  1. To automatically load the peripheral RBF and core RBF, use your preferred editor to open the <your_uefi_socfpga>/uefi-socfpga/AlteraPlatformPkg/Arria10SoCPkg/Arria10SoCPkg.dsc file.
  2. Configure the gAlteraSocFpgaTokenSpaceGuid.PcdAutoProgramCoreRbf value to 1.

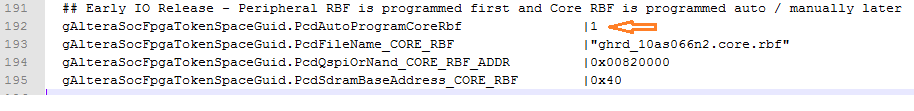

    Figure 73. Arria10SoCPkg.dsc Parameter Edit
