1.5. Physical Package Structure

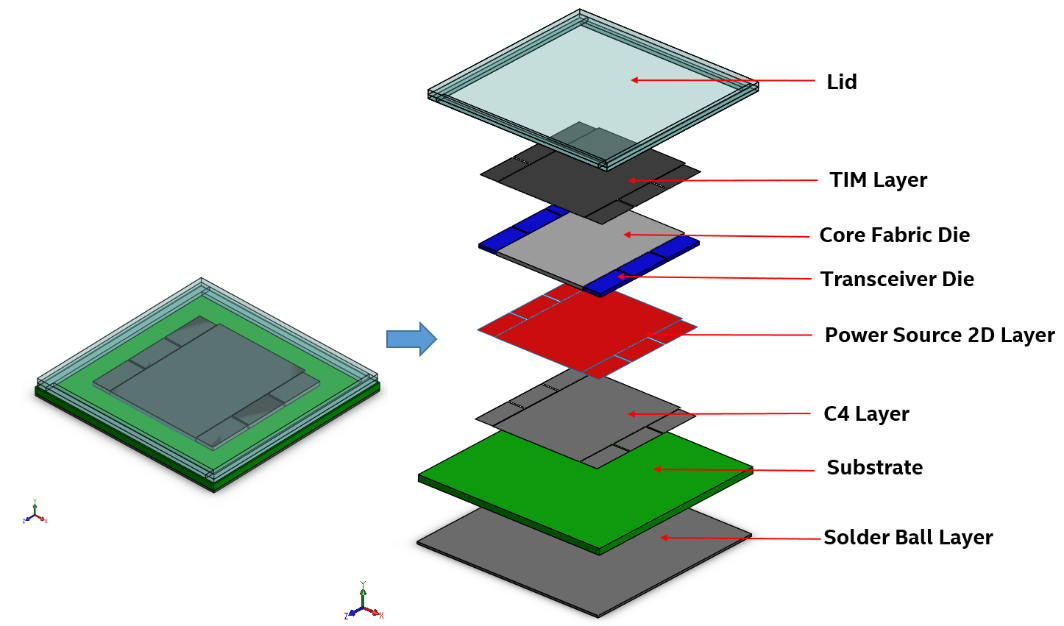

Figure 1. Physical Package StructureThis is a typical package structure relevant to thermal analysis and as laid out in the compact thermal models. This package only shows the core fabric die and transceiver dies.

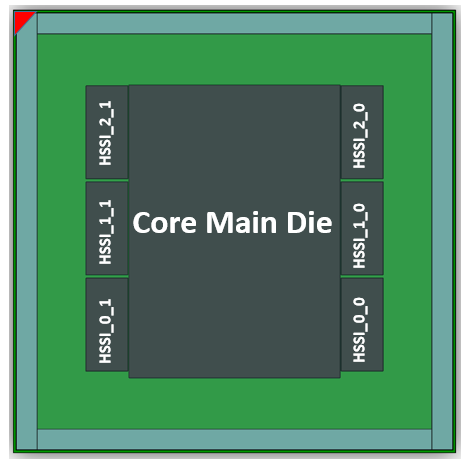

Figure 2. Package Top View
