3.2.1. Step 1: Create an Exploration Dashboard Workspace in Local Mode

To create an Exploration Dashboard workspace for use in local mode, follow these steps:

  1. Create an Exploration Dashboard Workspace, as Step 1: Create an Exploration Dashboard Workspace describes. For this example, select the Local setting in the Create Compute Specification dialog box.
  2. Specify the ID, and retain the default values for the Quartus Prime software root directory and LM license file settings.

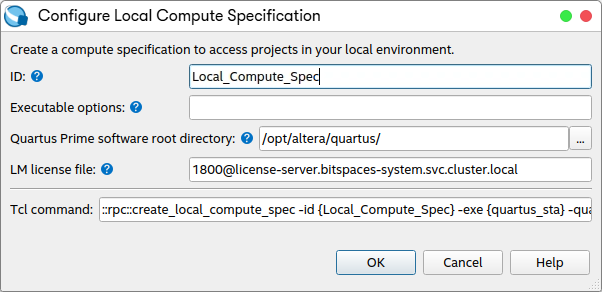

    Figure 43. Configure Local Compute Specification Type
