6.2.3. TCAM Delete by Entry ID Operations

This operation deletes an existing entry based on a given entry ID. The keys and results related to the given entry ID are deleted.

To perform a delete operation, follow these steps in the AXI-Lite interface:

  1. Write the entry ID to the entry registers.
  2. Write to the mgmt_ctrl register, specifying op_type = 0x2.
  3. Poll the mgmt_ctrl register until the busy bit = 0x0.
  4. Check the mgmt_ctrl success bit; a value of 0x1 indicates that the deletion has been completed.

A successful deletion sets the mgmt_ctrl register success bit to 0x1; if the operation fails, mgmt_ctrl is set to 0x0. If you attempt to delete an entry that does not exist, the operation fails.

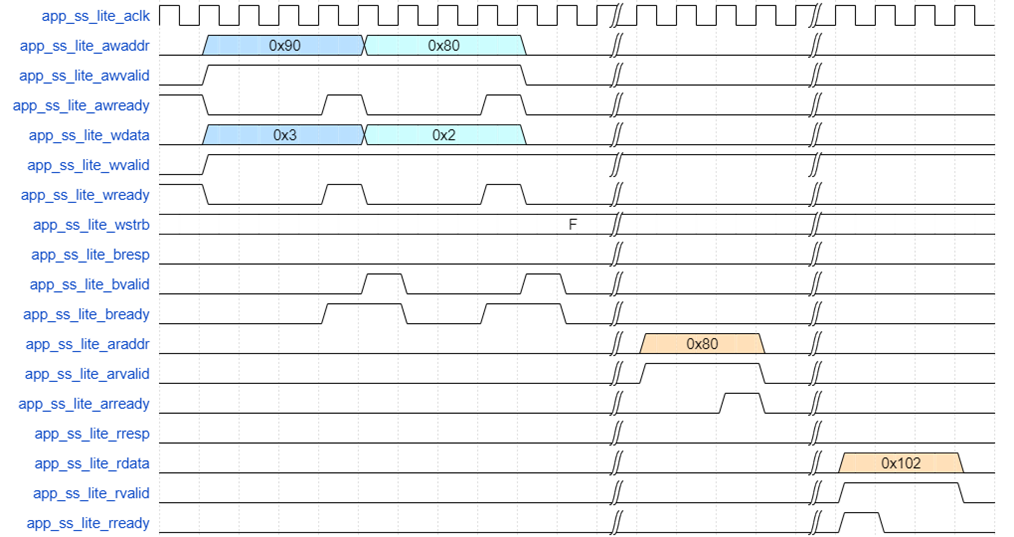

The following image shows a delete operation on TCAM of entry = 3, where:

  • The address of mgmt_ctrl register is 0x80, due to CSR_BASEADDR + CSR_ADDROFF + offset -> 0 + 0x60 + 0x20 = 0x80.
  • The address of Entry register is 0x90, due to CSR_BASEADDR + CSR_ADDROFF + offset -> 0 + 0x60 + 0x30 = 0x90.
Figure 23. Delete Operation on TCAM
