6.3.4. BCAM Delete Operations

You can use a delete operation to delete an existing (key, result) entry; you must provide the key.

To perform a delete operation, follow these steps in the AXI-Lite interface:

  1. Write the key to the key_n registers.
  2. Write to the mgmt_ctrl register, specifying op_type = 0x2.
  3. Poll the mgmt_ctrl register until the busy bit = 0x0.
A successful deletion sets the mgmt_ctrl register success bit to 0x1; if the deletion fails, mgmt_ctrl is set to 0x0. If you attempt to delete an entry that does not exist, the operation fails.

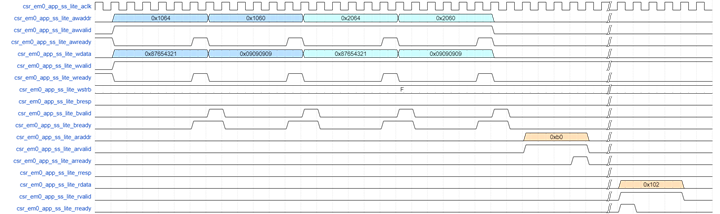

The following image shows an delete operation on BCAM of key = 0x8765432109090909, where:

  • The address of mgmt_ctrl register is 0xb0, due to CSR_BASEADDR + CSR_ADDROFF + offset -> 0 + 0x60 + 0x50 = 0xB0.
  • The address of key_n register is 0x1060, due to CSR_BASEADDR + CSR_ADDROFF + offset -> 0 + 0x60 + 0x1000 = 0x1060.
  • The address of result_n register is 0x2060, due to CSR_BASEADDR + CSR_ADDROFF + offset -> 0 + 0x60 + 0x2000 = 0x2060.
Figure 30. Delete Operation on BCAM
