6.4.7. MBL Delete Key Using Handle Operation

This operation requests a key deletion from a logical table, using its handle.

To perform a delete operation, follow these steps through AXI-Lite interface:

  1. Write the handle to the MBL_KEY_HANDLE register.
  2. Poll the MBL_MGMT_CTRL register until the busy bit = 0x0.
  3. Write to the MBL_MGMT_CTRL register:
    • Specifying req_type = 0x6.
    • Specifying tab (logical table).
  4. Check MBL_MGMT_CTRL register success bit, success bit is set to 0x1 to indicate the delete operation is handled successfully.

The following diagram shows a delete operation using a handle on MBL where:

The address of mgmt_ctrl register is 0xb0, due to CSR_BASEADDR + CSR_ADDROFF + offset -> 0 + 0x60 + 0x20 = 0x80.

The address of mbl_key_handle register is 0x1060, due to CSR_BASEADDR + CSR_ADDROFF + offset -> 0 + 0x60 + 0x0024= 0x0084.

The address of result_n register is 0x2060, due to CSR_BASEADDR + CSR_ADDROFF + offset -> 0 + 0x60 + 0x2000 = 0x2060.

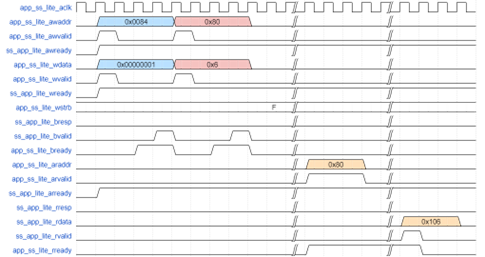

Figure 39.  Delete Key Using Handle Operation on MBL
