6.4.6. MBL Modify Result Using Handle Operation

This operation finds the key using its handle and modifies the associated result.

To perform a modify result using handle operation, follow these steps through AXI-Lite interface:

  1. Write the handle to the MBL_KEY_HANDLE register.
  2. Write the result to the MBL_RES registers.
  3. Poll the MBL_MGMT_CTRL register until the busy bit = 0x0.
  4. Write to the MBL_MGMT_CTRL register:
    • Specifying req_type = 0x5.
    • Specifying tab (logical table).
  5. Check MBL_MGMT_CTRL register success bit, success bit is set to 0x1 to indicate the modify operation is handled successfully.

The MBL_KEY registers are written with the key corresponding to the handle.

The following diagram shows a modify operation using handles on MBL where:

  • The address of mgmt_ctrl register is 0xb0, due to CSR_BASEADDR + CSR_ADDROFF + offset -> 0 + 0x60 + 0x20 = 0x80.
  • The address of mbl_key_handle register is 0x1060, due to CSR_BASEADDR + CSR_ADDROFF + offset -> 0 + 0x60 + 0x0024= 0x0084.
  • The address of result_n register is 0x2060, due to CSR_BASEADDR + CSR_ADDROFF + offset -> 0 + 0x60 + 0x2000 = 0x2060.

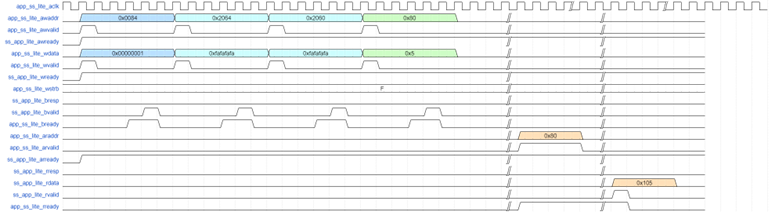

Figure 38.  Modify Result Using Handle Operation on MBL
