2.1.1. Reading Programming File Information

To read programming file information:
  1. Click Programming File Info.
  2. Click ... to select the supporting programming file.
  3. Click Analyze to examine the programming file chosen.
  4. Click Save As to save the analyzed output of the selected programming file into a text file.

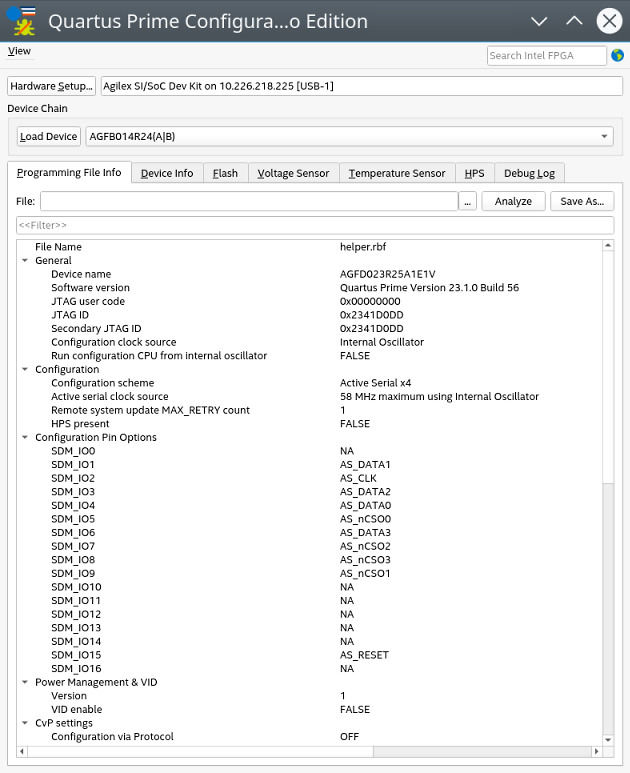

Figure 3. Programming File Info
