3.2. Setting up the CvP Parameters in Device and Pin Options

Follow these steps to specify CvP parameters:

  1. On the Quartus Prime Assignments menu, select Device, and then click Device and Pin Options.
  2. Under Category, select General, and then enable the following option:
    1. Auto-restart configuration after error, enable this option to allow automatic restart of configuration attempts if an error is detected. Any restarted configuration may exceed the required PCIe startup time to allow bus enumeration and prevent the use of quartus_cvp for core programming.
    Leave all other options disabled.

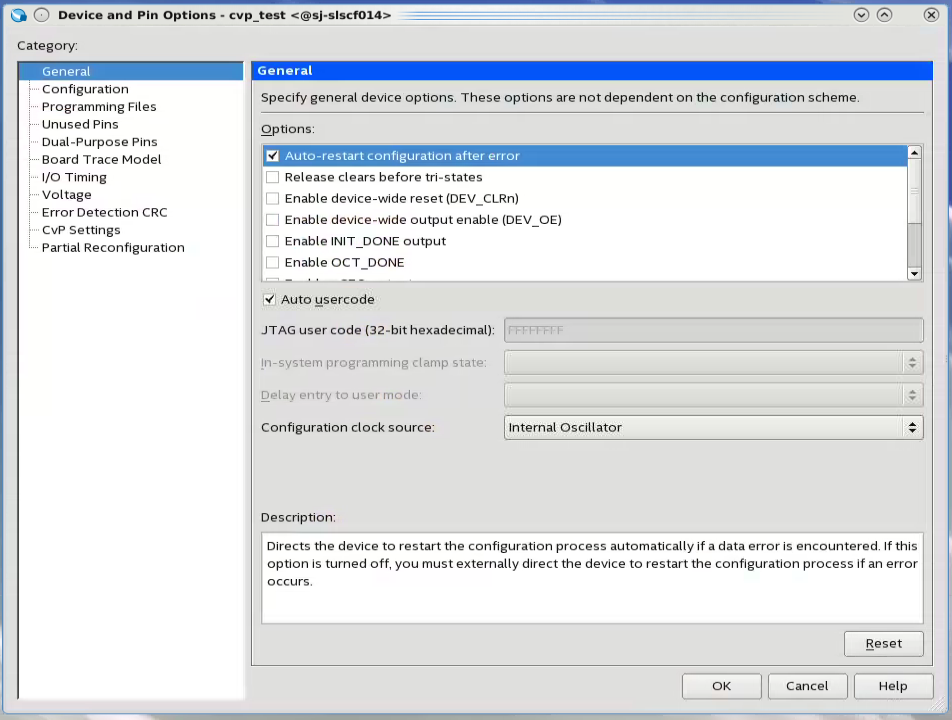

    Figure 6. CvP Parameters in General Tab
  3. Under Category, select Configuration. For Configuration scheme, select Active Serial x1 (can use Configuration Device) or Active Serial x4 (can use Configuration Device).

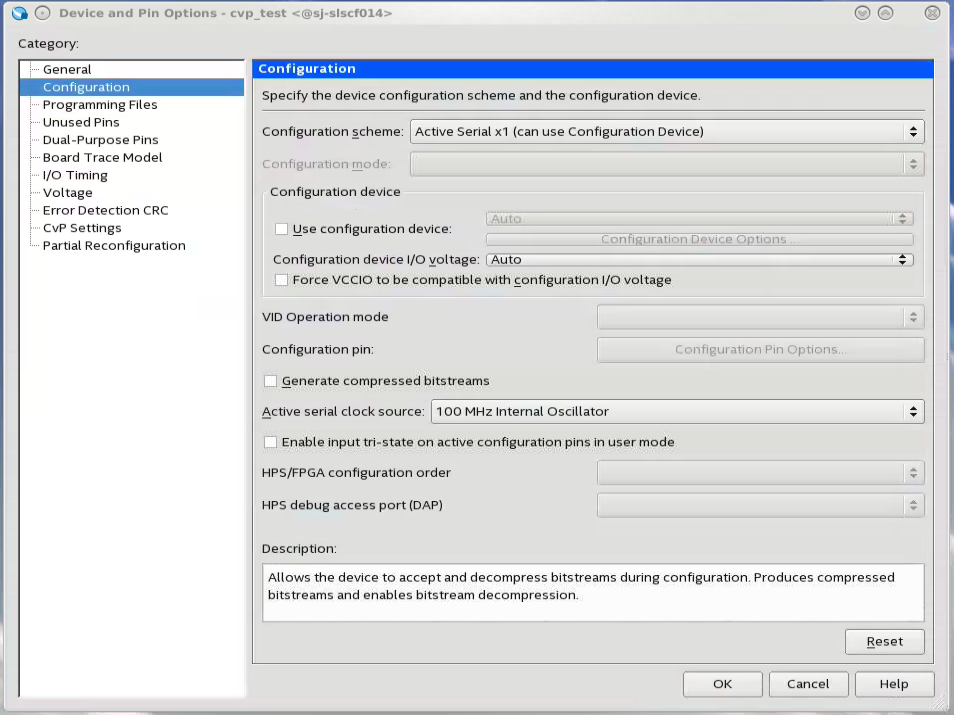

    Figure 7. CvP Parameters in Configuration Tab
  4. Under Category, select CvP Settings to specify CvP settings. For Configuration via Protocol select Core Initialization and then turn on Enable CVP_CONFDONE pin and Enable open drain on CVP_CONFDONE pin. Click OK.

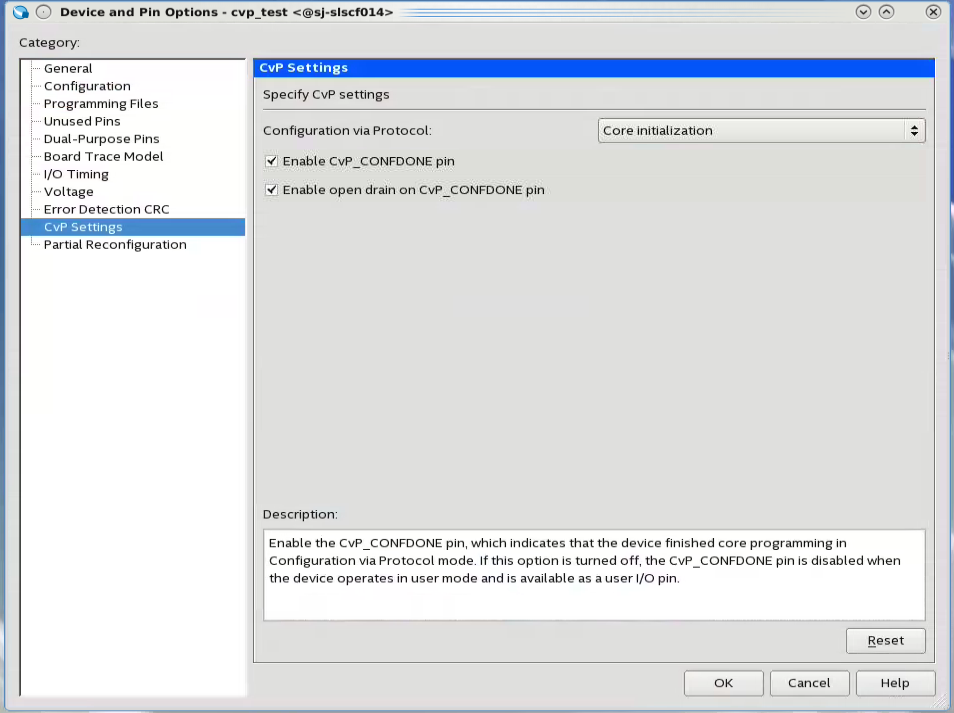

    Figure 8. CvP Parameters in CvP Settings Tab
