6.4.2. APB Interface Timing

Write Access

Referring to the following diagram, write transactions to the APB interface follow these steps:

  1. At T1, a write transfer starts with address ADDR1, write data DATA1, write signal PWRITE and select signal PSEL registered at the rising edge of the core clock. This is the setup phase of the write transfer.
  2. At T2, PENABLE is registered at the rising edge of the core clock and held HIGH until the HBM2 controller asserts PREADY HIGH. The values of PADDR, PSEL, PENABLE, PWDATA, PSTRB and PWRITE must remain unchanged while PREADY remains LOW.
  3. At Tx, when PREADY goes HIGH, the write transaction completes at the next rising edge of the core clock. This indicates the end of the Write Access Phase. PREADY stays HIGH only for one clock cycle.
  4. PENABLE is deasserted at the end of the transfer. The select signal PSEL, is also deasserted unless the transfer is to be followed immediately by another transfer.

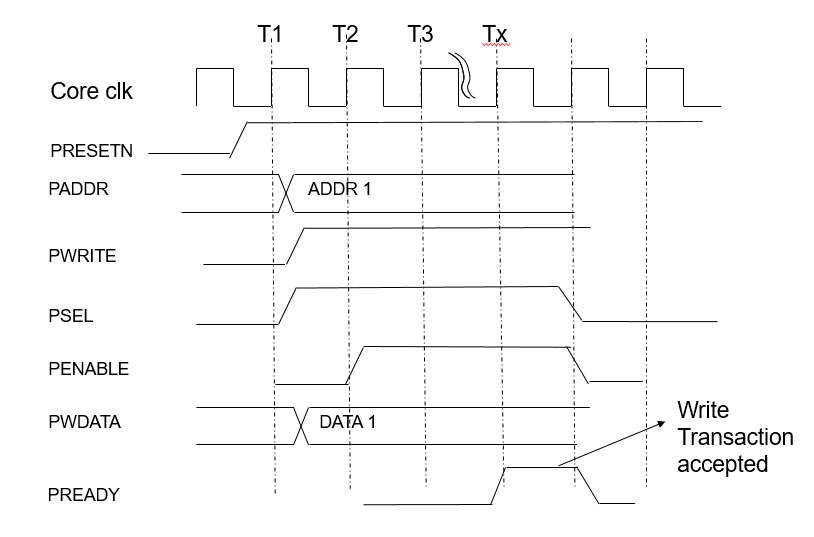

Figure 28. APB Write Transaction

Read Access

Referring to the following diagram, read transactions to the APB interface follow these steps:

  1. At T1, a read transfer starts with address ADDR1, PWRITE asserted LOW and select signal PSEL registered at the rising edge of the core clock. This is the setup phase of the write transfer.
  2. At T2, PENABLE is registered at the rising edge of the core clock and held HIGH until the HBM2 controller asserts PREADY HIGH. The values of PADDR, PSEL, PENABLE and PWRITE must remain unchanged while PREADY remains LOW.
  3. At Tx, when PREADY goes HIGH, Read Data is available on the PRDATA bus. PREADY stays HIGH only for one clock cycle.
  4. PENABLE is deasserted at the end of the transfer. The select signal PSEL, is also deasserted unless the transfer is to be followed immediately by another transfer.

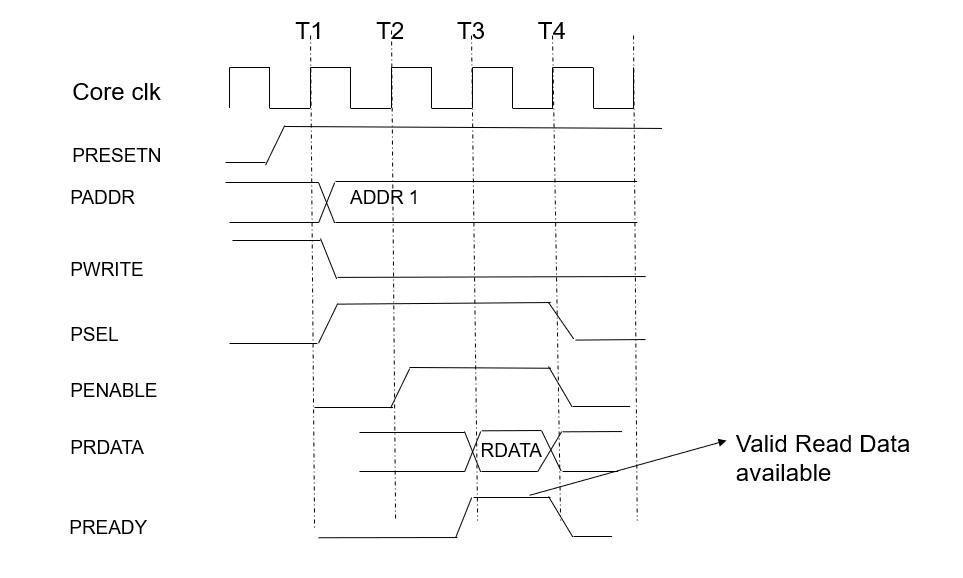

Figure 29. APB Read Transaction
