Function Group Color Editor

The Function Group Color Editor is the Function Aggregation in a restricted mode that only enables you to edit the colors of functions and function groups.

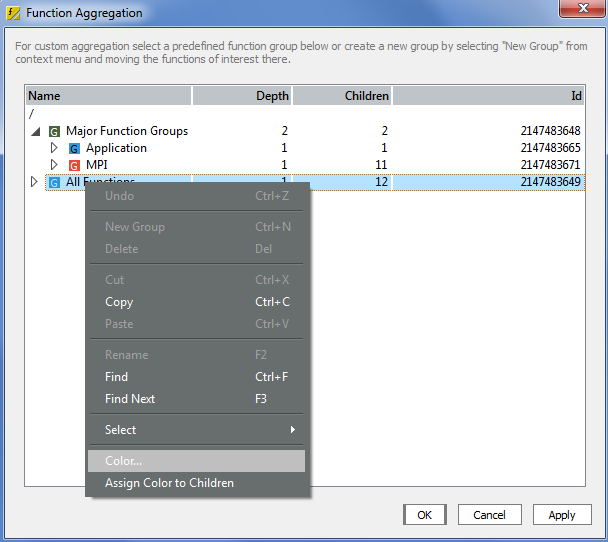

You can access the Function Group Color Editor through the Event Timeline settings dialog box or through the context menu of the Function Aggregation dialog box context menu.

The dialog button Reset to default resets all customized function colors to their defaults.

The context menu of the Function Group Color Editor has a Find entry and a Find Next entry, both of which are explained in Process Aggregation and also a Color entry and an Assign Color to Children entry, which are explained in Function Aggregation.
