Filtering and Tagging

A mesh pattern indicates tagged items in the Quantitative Timeline.

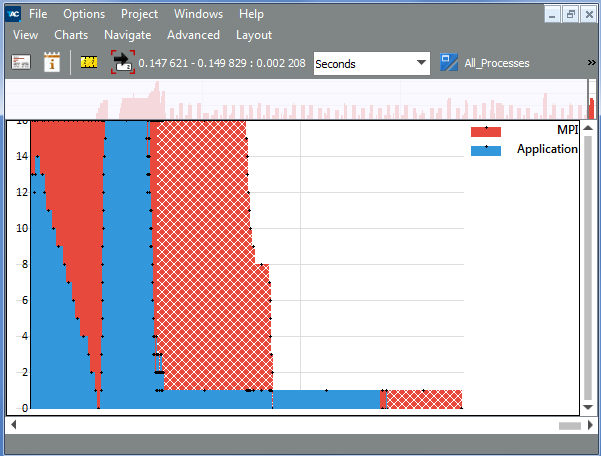

This is what the Quantitative Timeline for the poisson_icomm.single.stf trace file with the tagged MPI_Finalize function looks like:

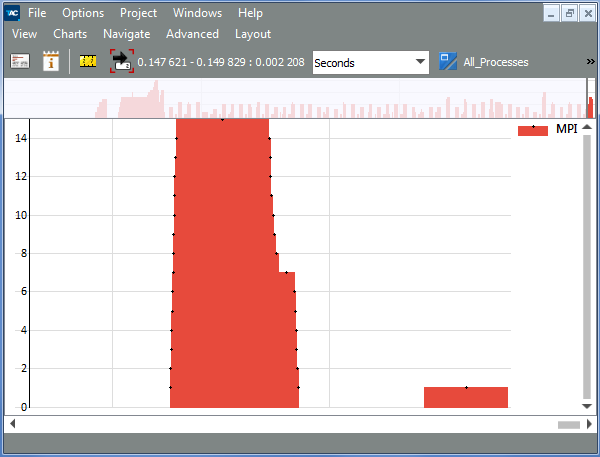

Filtering in the Quantitative Timeline works the same way as in any other Chart. The result for filtering MPI_Finalize looks like:
