3.12. PTA - Search Features

The Power and Thermal Analyzer (PTA) supports partial or full-text string search for instance names.
Note: Only individual instances can be searched for, not full instance paths.

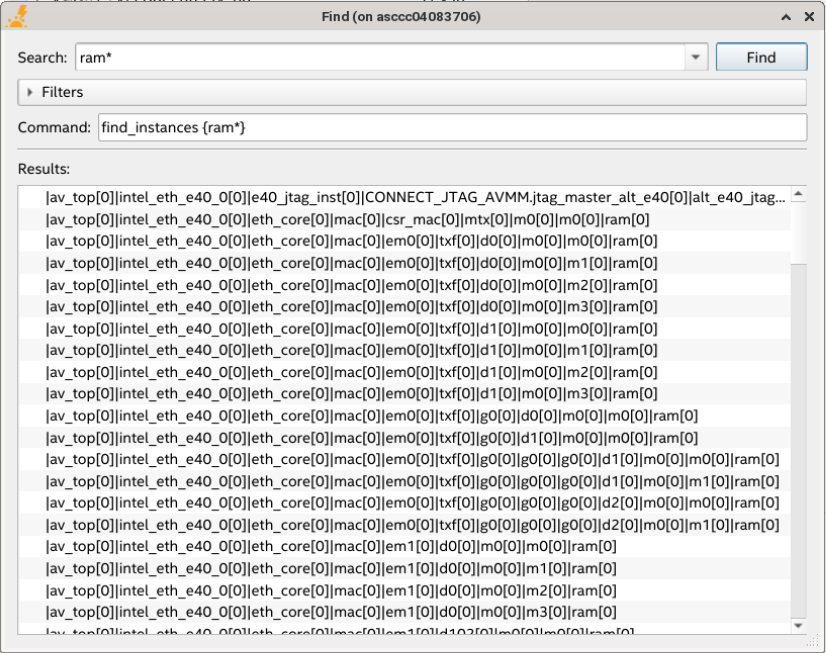

The following image shows an example of searching with a partial string for instances containing the word ram:

Figure 28. Performing a partial string search
