3.8. PTA - Resource Utilization Panel

The Power and Thermal Analyzer (PTA) calculates resource utilization values based on the maximum available resources of a given type for a selected device and updates this tile in real time.

If resource utilization exceeds 100%, it indicates that the current device may not be able to support the resources entered across all levels of hierarchy.

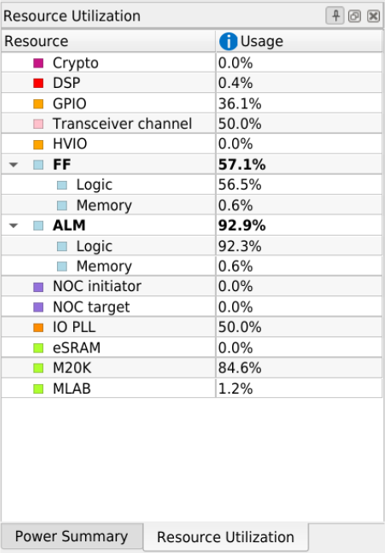

Figure 26. Resource Utilization
