4.3. PTA - Instance

All resources are assigned a level of hierarchy. The root or top-level instance is labeled with a pipe ( | ) and is added by default with the first addition of a design resource.

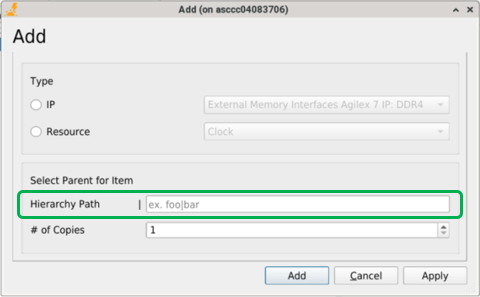

To add additional instances, specify a new instance level when using the Add dialog:

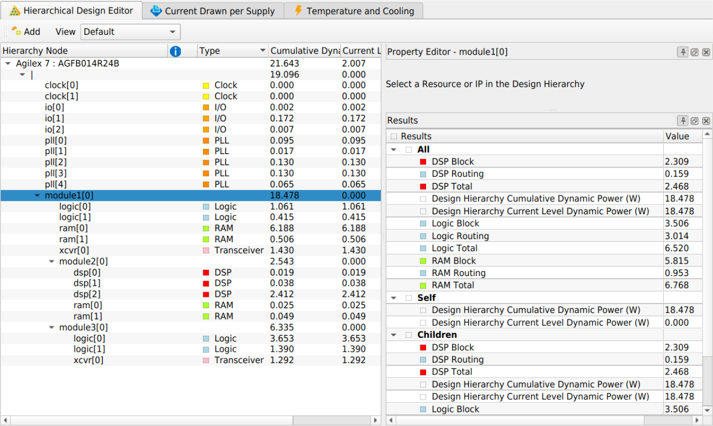

Selection of an instance reports the power statistics at that level, and all children under that level of hierarchy in the Results pane:
