3.2. Drivers Parameters

The parameters of the Drivers tab allow you to select the number of drivers that you want to implement, the address and data configurations, and the AXI ports settings.

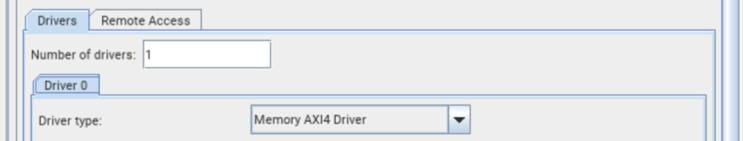

Figure 3. Group: Drivers

Table 4.  Group: Drivers
Display Name Description
Number of drivers Specifies the number of drivers. The supported range for this parameter is from 1 to 50.
Driver type Specifies the driver type. You can choose from several driver options:
  • CSR AXI4-Lite driver
  • Memory AIX4 driver
  • Memory status driver
  • Memory reset driver
  • CAM AXI4-stream driver

Section Content
CSR AXI4-Lite Driver Parameters
Memory AXI4 Driver Parameters
Memory Status Driver Parameters
Memory Reset Driver Parameters
CAM AXI4-Stream Driver Parameters
