1.7.1.2. About the Advanced SEU Detection IP Core

Use the Advanced SEU Detection (ASD) IP core when SEU tolerance is a design concern.

You must use the EMR Unloader IP core with the ASD IP core. Therefore, if you use the ASD IP and the Fault Injection IP in the same design, they must share the EMR Unloader output via an Avalon® -ST splitter component. The following figure shows a Platform Designer system in which an Avalon® -ST splitter distributes the EMR contents to the ASD and Fault Injection IP cores.

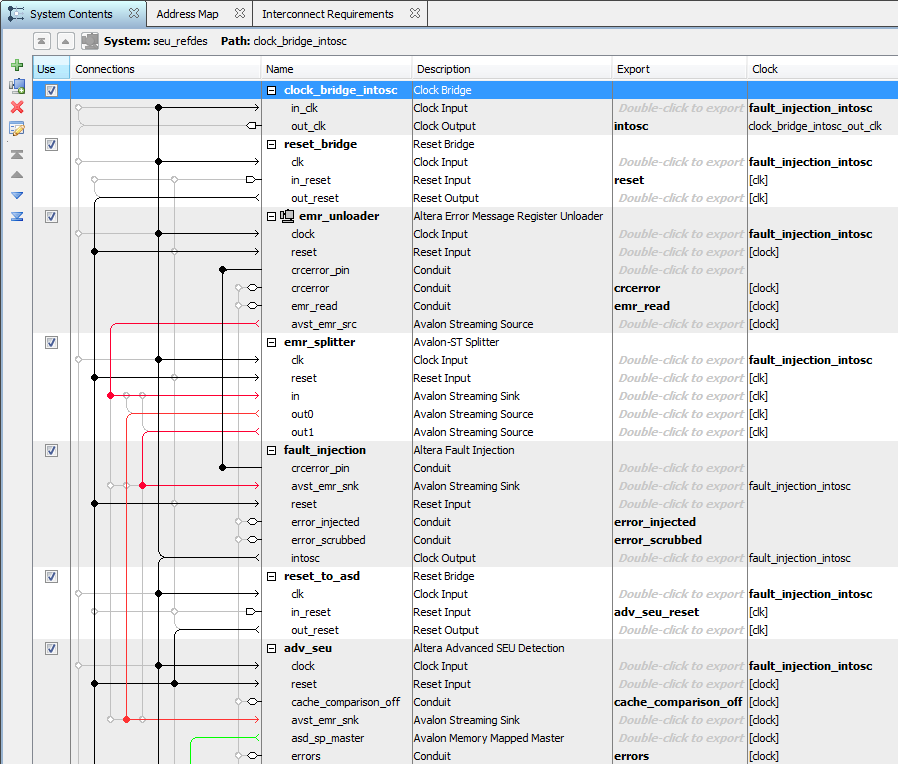

Figure 8. Using the ASD and Fault Injection IP in the Same Platform Designer System
