16.2.4.2. Sequential Address Read
Sequential reads are initiated in the same way as a random read except after the bridge has received the first data byte, the upstream I2C host issues an acknowledge as opposed to a Stop condition. This directs the bridge to keep the Avalon® read signal high for the next sequential address. The internal address counter increments by one at the completion of each read operation and allows the entire memory contents to be serially read during one operation.

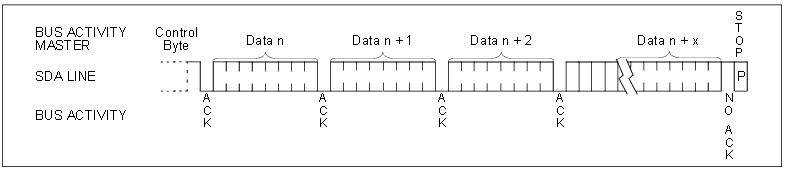

Figure 58. Sequential Address Read
![](/content/dam/docs/us/en/683130/22-3/iga1460997612881.png)
