Serial Digital Interface II IP Support Center

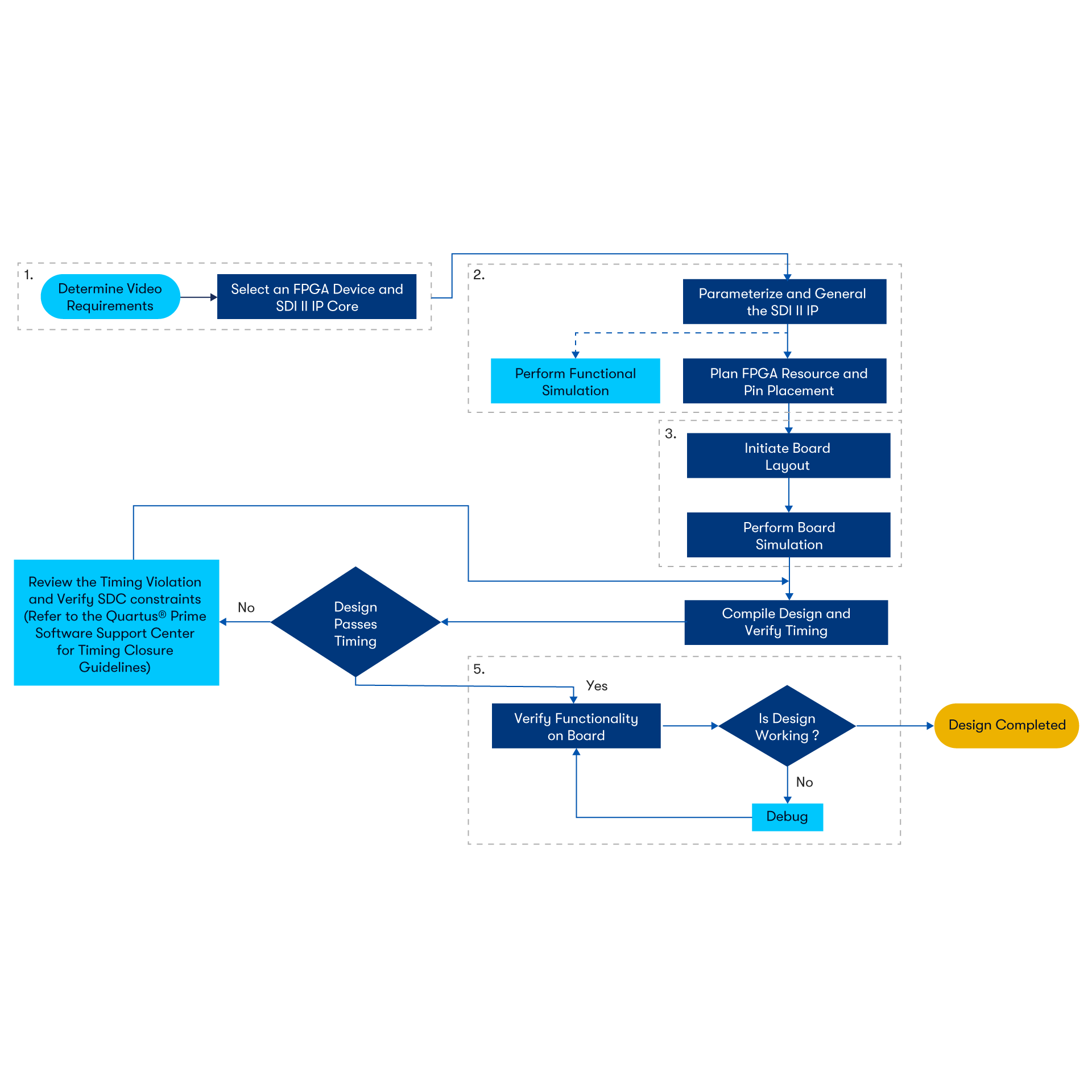

This page is organized into categories that align with a Serial Digital Interface II system design flow.

Ensure to enable option “CRC error output” in the SDI II FPGA IP Parameter Editor for correct CRC values (not applicable for SD-SDI).

You can refer to the SDI II FPGA IP User Guide, section 5.3.1. Insert Line for a correct line insertion.

You can refer to the SDI II Stratix® 10 FPGA IP Design Example User Guide, section 1.5.1. Connection and Settings Guidelines on how to display NTSC, and PAL video format correctly.

Make sure the clock signal frequency is connected to the correct onboard clock frequency. For example, if the SDI Tx PLL reflck clock signal is configured to 148.5 MHz, then use 148.5 MHz clock chip as well to connect to SDI Tx PLL refclk signal.

For serial loopback example design, customer can see all the supported video resolution in .tcl file at this directory <example design folder>\hwtest\tpg_ctrl.tcl. For parallel loopback example design, this .tcl file is not available, but customer can still access all the supported video resolution in SMPTE specification.
