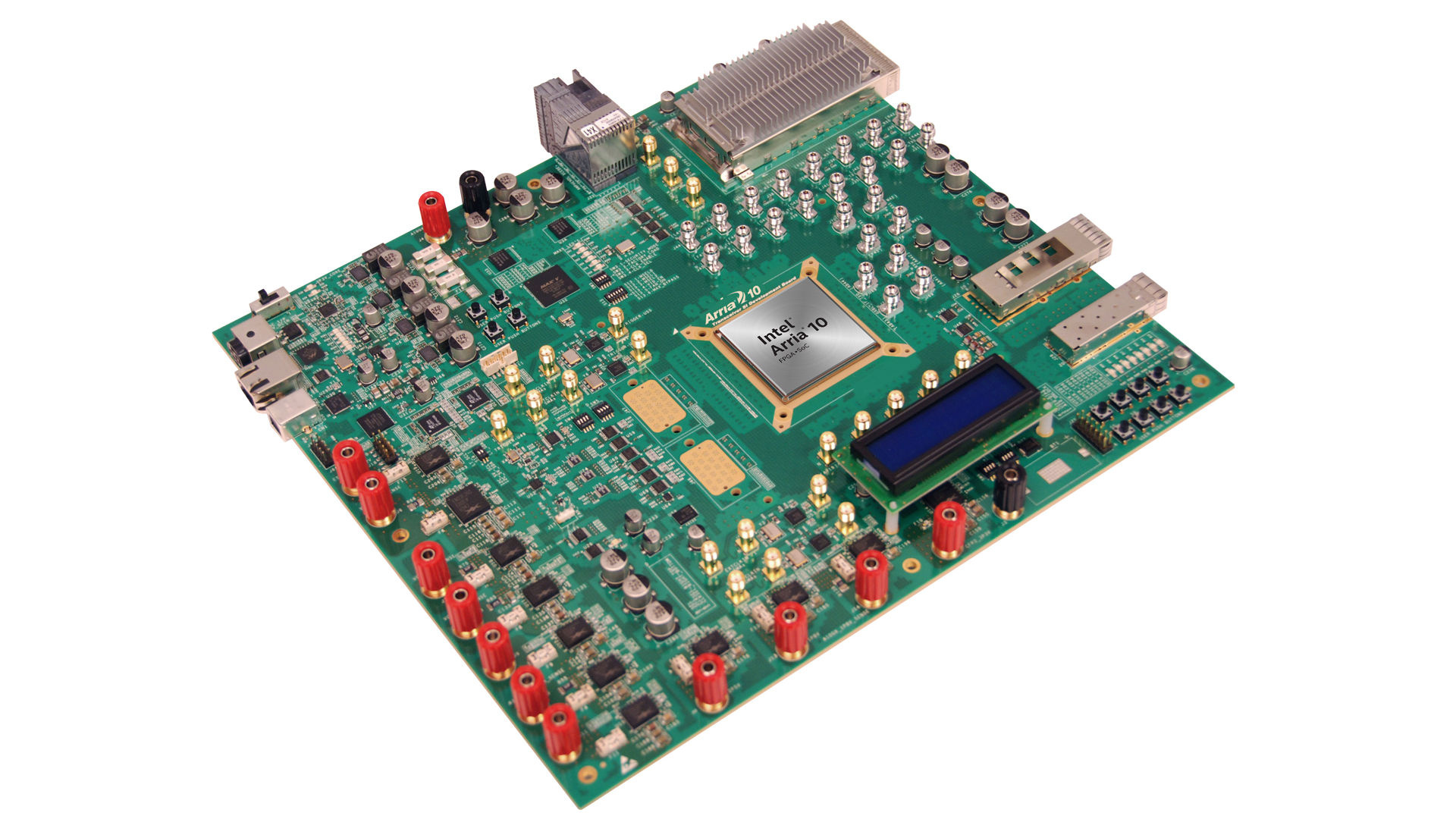

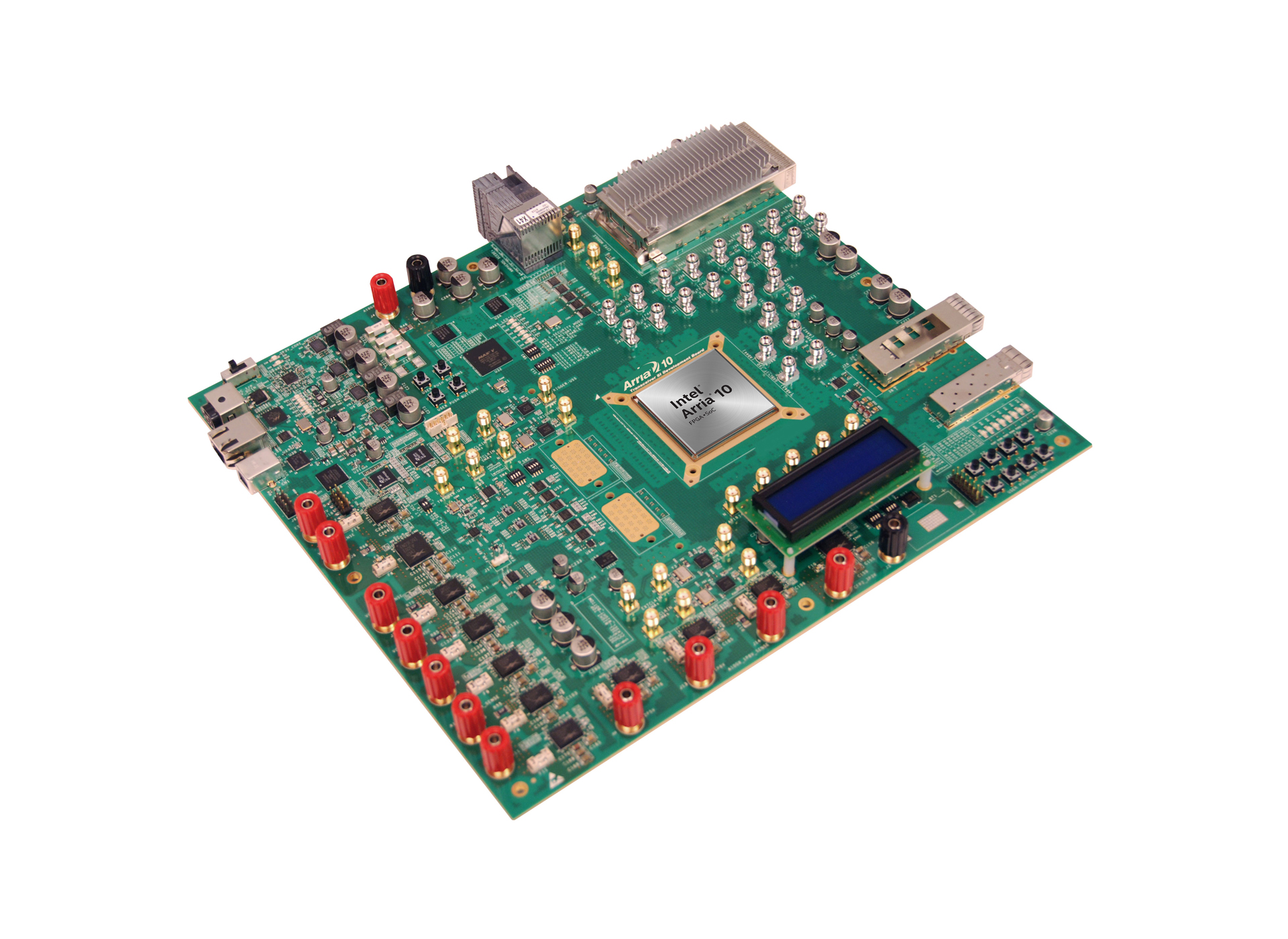

Intel® Arria® 10 GX Transceiver Signal Integrity Development Kit

The Intel® Arria® 10 GX Transceiver Signal Integrity Development Kit helps you thoroughly evaluate the signal integrity of Intel® Arria® 10 GX transceivers. This development kit delivers a complete design environment that includes all hardware and software you need to start taking advantage of the performance and capabilities available in Intel® Arria® 10 GX FPGAs.

  • Overview

With this kit, you can:

  • Evaluate transceiver performance from 1 Gbps up to 17.4 Gbps (GX).
  • Generate and check pseudo-random binary sequence (PRBS) patterns via an easy-to-use GUI.
  • Dynamically change differential output voltage (VOD), pre-emphasis, and equalization settings to optimize transceiver performance for your channel.
  • Perform jitter analysis.
  • Verify physical medium attachment (PMA) compliance with PCI Express* (PCIe*), Gbps Ethernet (GbE), XAUI, CEI-6G, Serial RapidIO*, high-definition serial digital interface (HD-SDI), and other major standards.

Table 1. Ordering Information

Ordering Code Buy Device Contact Distributor for more information
DK-SI-10AX115S-A Buy now 10AX115S2F45I1SG
  • Step 1: Copy the Dev Kit Ordering Code
  • Step 2: Select an Intel Distributor from Intel® Solutions Marketplace
  • Step 3: Fill out contact form and include the Dev Kit Ordering Code
View all Show less

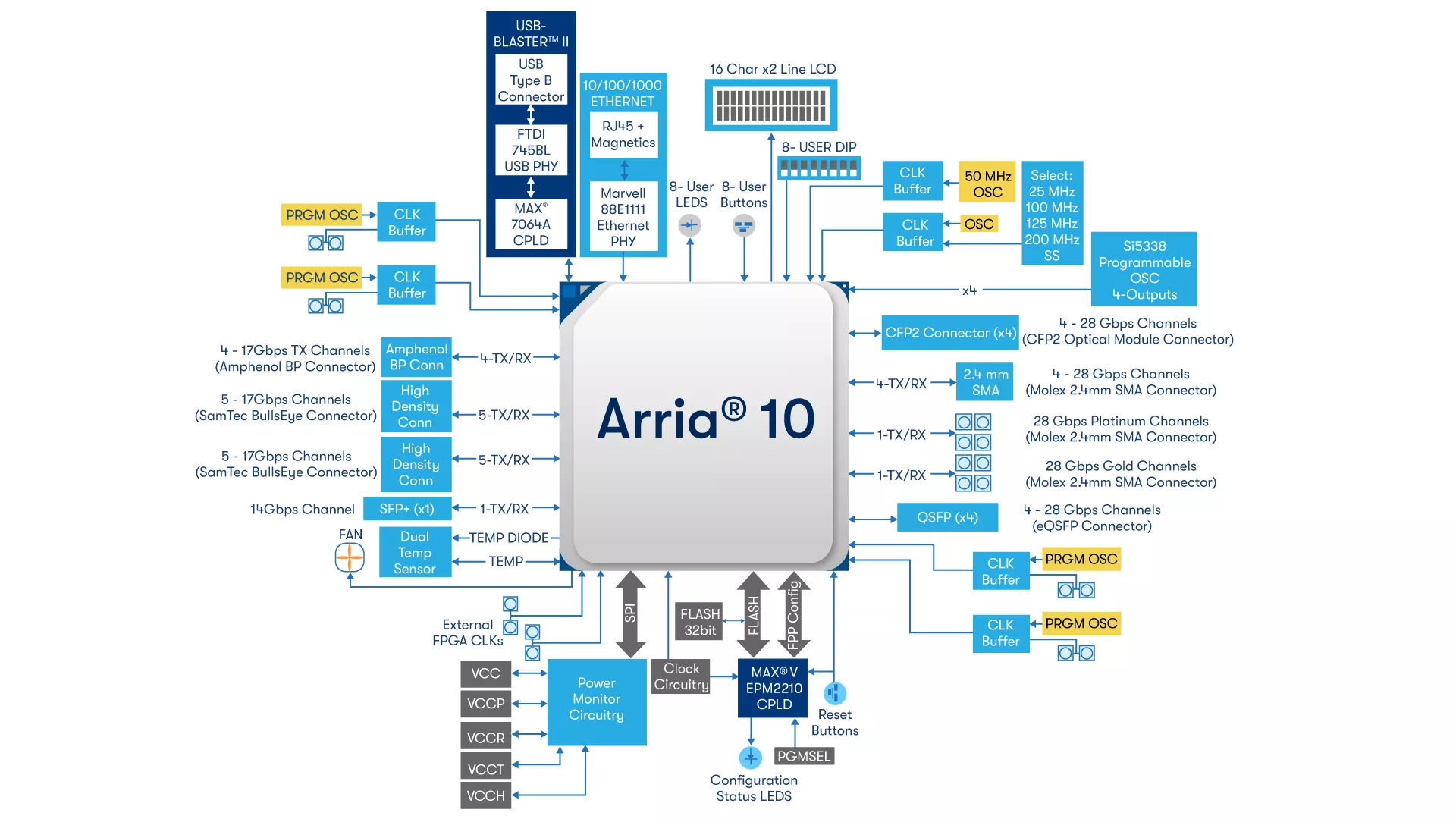

Table 2. Development Kit Contents and Features

Parameters Hardware
Device Intel® Arria® 10 GX Transceiver Signal Integrity Development board running on Intel® Arria® 10 GX 10AX115S2F45I1SG FPGA.
Form Factor Signal Integrity development kit
Features and Connectors
  • Six full-duplex transceiver channels with 2.4 mm SMA connectors
  • Four full-duplex transceiver channels to Amphenol Xcede+* backplane connector.
  • Four full-duplex transceiver channels to CFP2 optical interface.
  • Four full duplex transceiver channel to QSFP+ optical interface.
  • Single transceiver channel to SFP+ optical interface.
  • Ten full-duplex transceiver channels to Samtec Bullseye high-density connector.
  • Character LCD
  • Ethernet PHY
Cables and Adapters AC adapter power, and Ethernet USB cables
Software A one-year license for the Intel® Quartus® Prime Pro Edition design software is included with the purchase of the kit. Refer to Intel® FPGA Software Installation and Licensing for more information
View all Show less

Table 3. Documentation

Design Files Content Descriptions
User Guide (Production Edition) › Documentation about setting up the development kit and using the included software.
Quick Start Guide (Production Edition) › Documentation summarizing the usage of the development kit and its features.
Installer Package (Production Edition) ›

A single installation file containing:

  • User Guide - Contains the user guide
  • Design Files - Contains schematics, and layout, Assembly, Bill of Materials
  • Board Test System: BTS GUI, Power GUI and Clock GUI
  • Golden Top project for pinout assignments management
  • Design Examples: Memory, XCVR, GPIO and PCIe Gen4

Note: You will need to install Intel® Quartus® Prime Software v16.1 or later for the BTS. If you are not sure, download and install the latest release.

View all Show less

Additional Resources

Find Boards

Find the right development board for your needs.

Explore Boards

Design Store

Intel® FPGA design examples provide efficient solutions for common design challenges. Visit the Design Store for Intel® FPGAs and RocketBoards.org to learn more.

Support Community

Find solutions, view comments and engage with other Intel® users around the world.

Intel Support Community
