Intel® Stratix® 10 GX Signal Integrity Development Kit

Intel® Stratix® 10 GX Signal Integrity Development Kit delivers a complete design environment that includes all hardware and software you need to start taking advantage of the performance and capabilities available in Intel® Stratix® 10 GX FPGAs for your design needs.

Intel® Stratix® 10 GX Signal Integrity Development Kit

You can use this development kit to:

  • Evaluate transceiver channel performance
  • Generate and verify pseudo-random binary sequence (PRBS) patterns via an easy-to-use GUI
  • Dynamically change the channel's differential output voltage (VoD), pre-emphasis, and equalization settings to optimize the performance for your channel

Table 1. Ordering Information

Ordering Code

Price

Ordering Information

DK-SI-1SGX-L-A

$8,500

Buy now ›

This development kit features a 1SG280LU2F50E2VG device and a one-year license for the Intel® Quartus® Prime Pro design software.

DK-SI-1SGX-H-A

$11,000

Buy now ›

This development kit features a 1SG280HU1F50E2VG device and a one-year license for the Intel® Quartus® Prime Pro design software.

Note:

Buyer represents that it is a product developer, software developer or system integrator and acknowledges that this product is an evaluation kit that is not FCC authorized, is made available solely for evaluation and software development, and may not be resold.

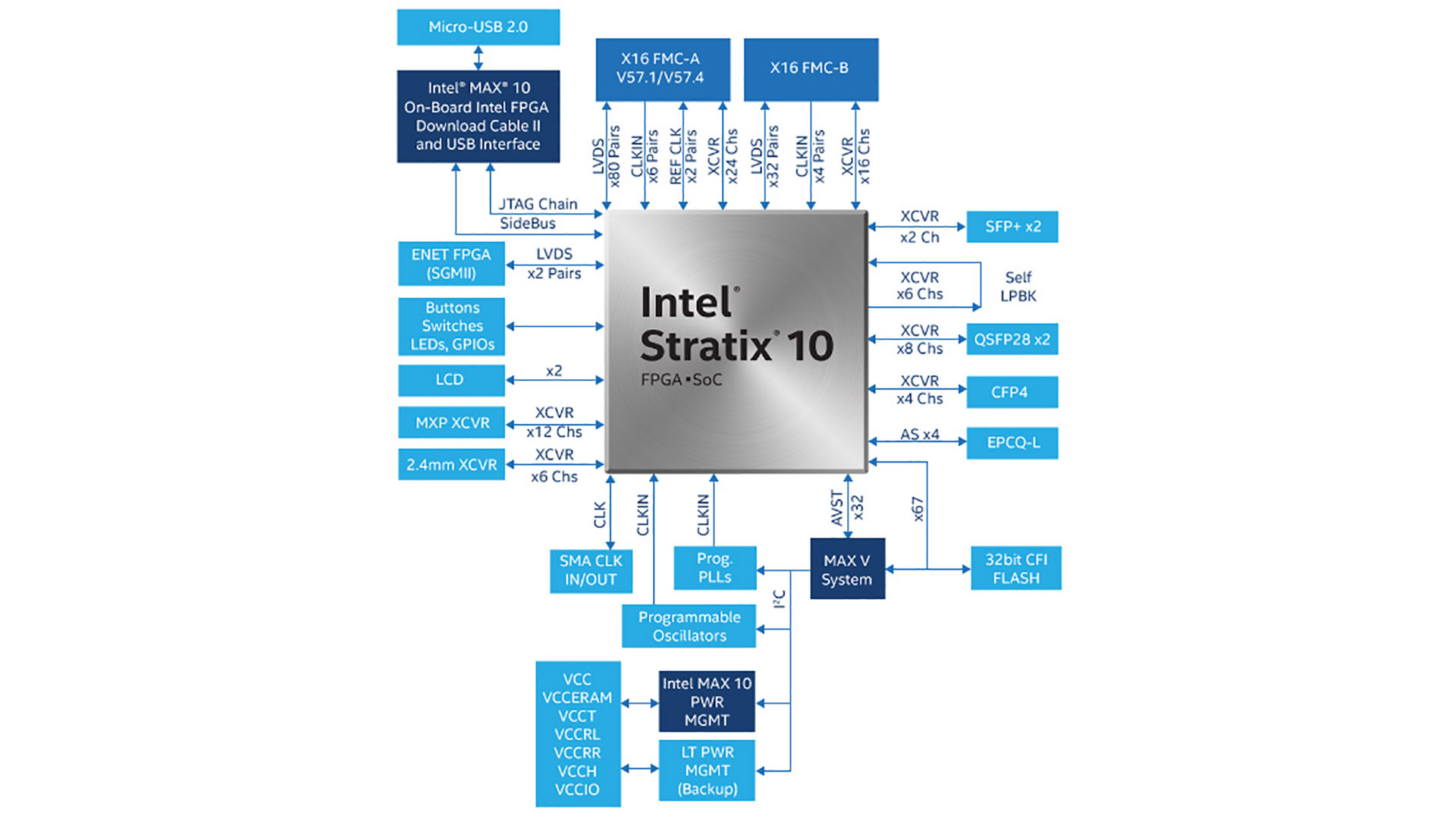

Table 2. Development Kit Contents

Hardware

Software1

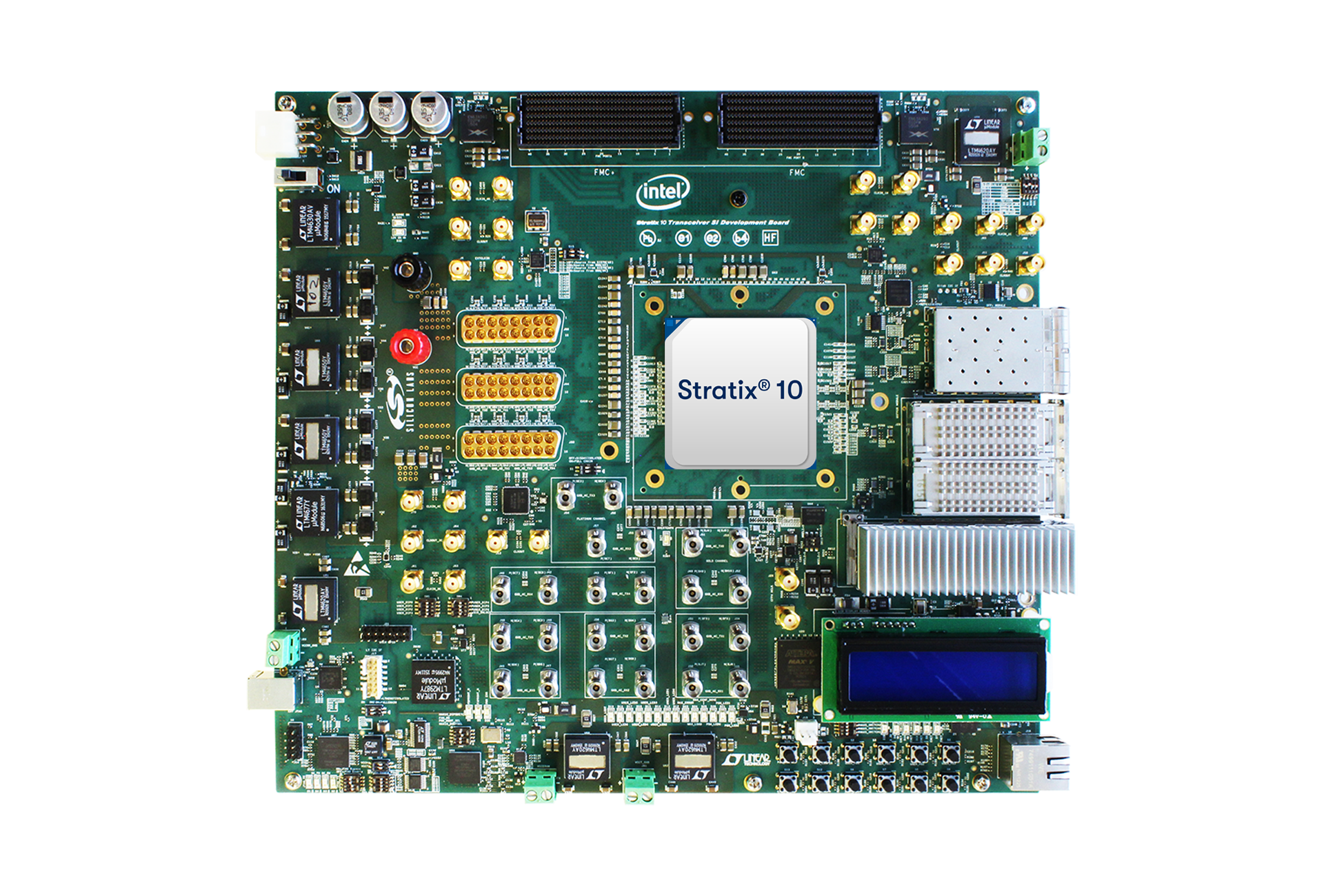

  • Intel® Stratix® 10 GX Signal Integrity development board with a Intel® Stratix® 10 GX FPGA
  • Six full-duplex transceiver channels with 2.4 mm SMA connectors
  • 24 full-duplex transceiver channels to FMC+ A connector
  • 16 full-duplex transceiver channels to FMC+ B connector
  • Four full-duplex transceiver channels to CFP4 optical interface
  • Four full-duplex transceiver channels to each QSFP+ 0 and QSFP+ 1 optical interfaces
  • Single transceiver channel to both SFP+ 0 and SFP+ 1 optical interfaces
  • Four full-duplex transceiver channels to each MXP 0, MXP 1, and MXP 2 high-density connectors
  • AC adapter power supply and
  • 24-pin to 6-pin power adapter cable
  • FMC+ loopback daughtercard
  • Ethernet cable
  • Design examples
  • Board Update Portal design
  • Board Test System (BTS) design
  • Documentation
  • Intel® Stratix® 10 GX Signal Integrity Development Kit User Guide
  • Board design files
  • Design software2
  • Intel® Quartus® Prime Pro software (required)

Notes:

1Download and unzip Intel® Stratix® 10 GX Signal Integrity Development Kit installer first. Install the Board Test System.

2A one-year license for Intel® Quartus® Prime Pro design software is available upon purchase of the kit. License activation instructions and FAQs.

Table 3. Intel® Stratix® 10 GX Signal Integrity Downloadable Content

Files

Description

Intel® Stratix® 10 GX SI L-Tile Package

ES (17.1)

Production (18.0 or higher)

Intel® Stratix® 10 GX SI H-Tile Package

ES (17.1)

Production (18.1 or higher)

A single installation file (for development kits using ES silicon) containing:

  • Board design files:
  • Schematics, gerber, and BOM
  • Board Test System (BTS)
  • Board Update Portal Design
  • Golden Top Design
  • Documents:
  • User Guide, Quick Start Guide, and so on
  • Note: You will need to install Intel® Quartus® Prime v17.1 or later for the BTS. Contact your Intel sales rep for more information on how to obtain the latest software

Quick Start Guide

Documentation summarizing the usage of the development kit and its features

User Guide

Documentation about setting up the development Kit and using the included software

Board Schematic

Power Tree for Intel® Stratix® 10 GX Signal Integrity Development Kit

ES

Production

ES board schematic is the same for L-Tile and H-Tile

Production board schematic is the same for L-Tile and H-Tile
