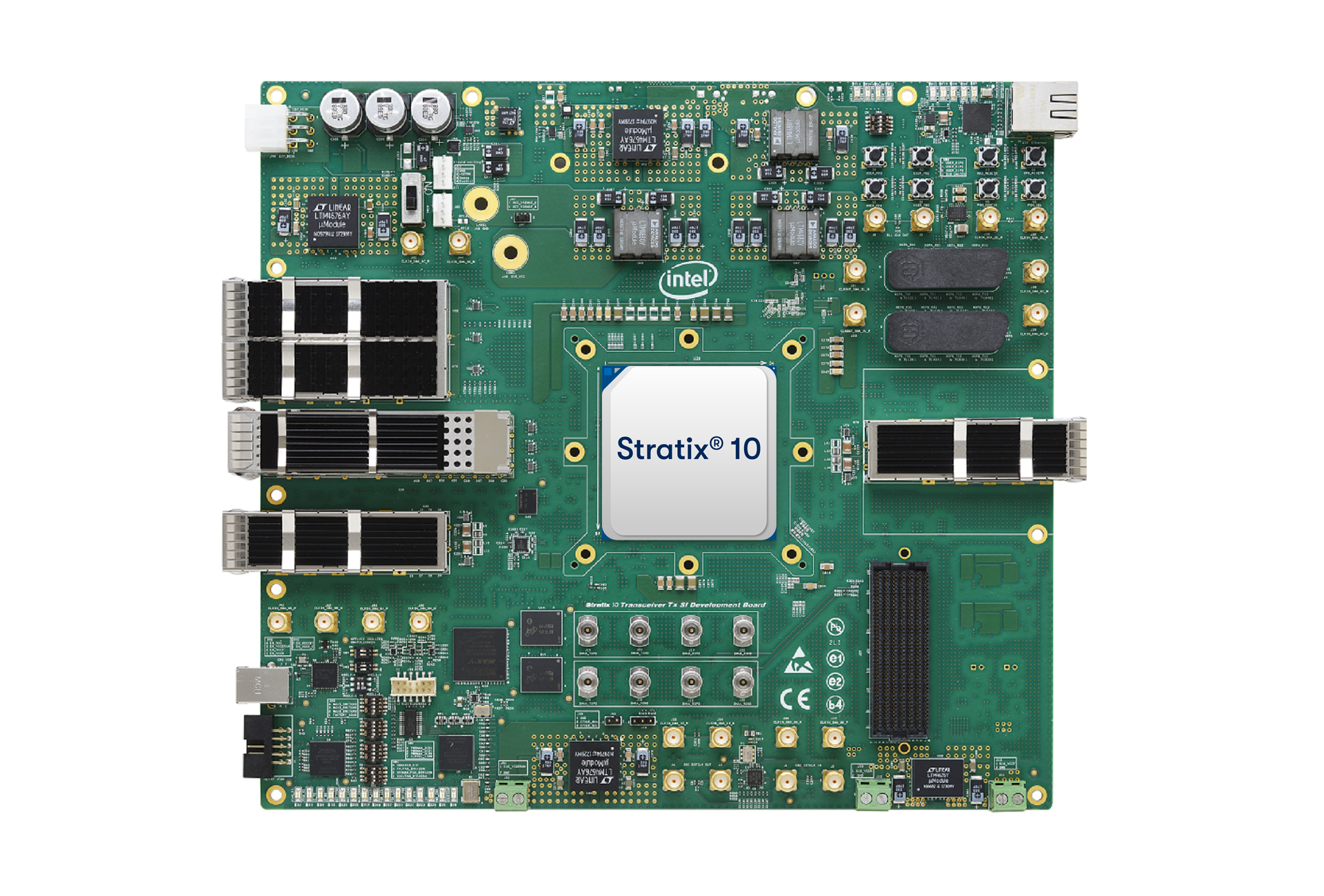

Intel® Stratix® 10 TX Signal Integrity Development Kit

The Intel® Stratix® 10 TX Signal Integrity (SI) Development Kit offers a complete design environment that includes both hardware and software for developing Intel® Stratix® 10 TX FPGA designs.

  • Overview

Use the Intel® Stratix® 10 TX Signal Integrity Development Kit to:

  • Evaluate transceiver performance up to 28.3 Gbps for H-Tile and 58 Gbps for E-Tile.
  • Generate and check pseudo-random binary sequence (PRBS) patterns.
  • Dynamically change differential output voltage (VOD) pre-emphasis and equalization settings to optimize transceiver performance for your channel.
  • Perform jitter analysis.
  • Verify physical medium attachment (PMA) compliance with PCI Express (PCIe), 10G/25G/50G/100G/200G/400G Ethernet, and other major standards.

Table 1. Ordering Information

Ordering Code Buy Intel Stratix 10 TX Signal Integrity Devices

 Contact Distributor for more information

DK-SI-1STX-E-A Buy now 1ST280EY2F55E1VG

Step 1: Copy the Dev Kit Ordering Code.

Step 2: Select an Intel Distributor from Intel® Solutions Marketplace.

Step 3: Fill out the contact form and include the Dev Kit Ordering Code​.

View all Show less

Table 2. Development Kit Contents and Features

What is included

Device

Intel Stratix 10 TX FPGA Devices

  • 1ST280EY2F55E1VG
Features and Connectors
  • FPGA mezzanine card (FMC) and loopback card
Cables and Adapters
  • AC adapter power cables
  • Ethernet and USB cables
Software  A one-year license for the Intel® Quartus® Prime Pro Edition design software is available upon purchase of the kit. Refer to the license activation instructions and FAQs.
View all Show less

Table 3. Documentation

 Design Files

Content Description

Quick Start Guide ES (Rev A)

Quick Start Guide Production (Rev B)

Documentation summarizing the usage of the development kit and its features

User Guide Documentation about setting up the development kit and using the included software (Intel® Quartus® Prime and installer package)

ES (18.0)

Production (18.1 or higher)

A single installation file containing:
  • User Guide - Contains the user guide
  • Design Files - Contains schematics, and layout, Assembly, Bill of Materials
  • Examples - Board Test System: BTS GUI, Power GUI and Clock GUI
  • Examples - Golden Top project for pinout assignments management
  • Examples - Design Examples: Memory, XCVR, GPIO and PCIe 4.0

Download and unzip the Design Files first, then install the Board Test System.

Board Schematic

Power Tree for Intel® Stratix® 10 TX Signal Integrity Development Kit

ES (Rev A)

Production (Rev B)

View all Show less

Note:

Buyer represents that it is a product developer, software developer or system integrator and acknowledges that this product is an evaluation kit that is not FCC authorized, is made available solely for evaluation and software development, and may not be resold.
