6.3.6.2. PIO Test

  1. After completing the instructions outlined in Prerequisites, navigate to the perfq folder.

    $ cd dpdk-stable/build/examples/mcdma-test/perfq

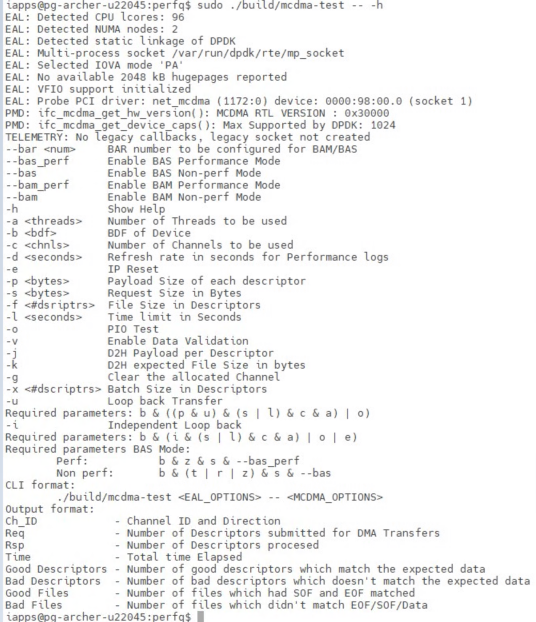

  2. Run the reference application mcdma-test using the following command to show the help information:

    $ sudo ./build/mcdma-test -- -h

    This command displays the available options in the application as shown in the image below:

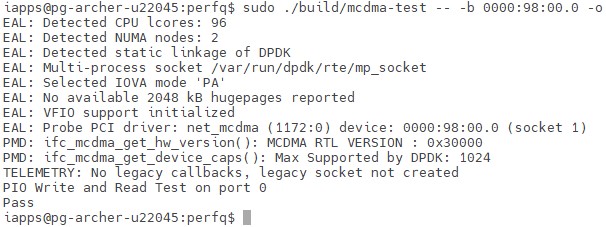

  3. Perform a PIO test to check if the setup works correctly. If successful, the application shows a Pass status.

    $ sudo ./build/mcdma-test -- -b 0000:98:00.0 -o

    The -b option should be updated with the correct BDF of the endpoint device in the system.
