3.2.2.1.4. BAM + BAS Mode

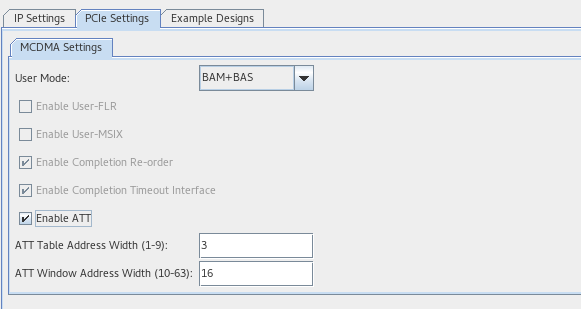

Figure 13. Root Port BAM + BAS Mode Parameters
Table 20.  Root Port BAM + BAS Mode Parameters
Parameter Value Default Value Description
Enable Completion Re-order On On Enables completion re-order.
Enable Completion Timeout Interface On On Enables completion timeout interface.
Enable ATT On / Off Off Enables Address Translation Table for BAS.
ATT Table Address Width 1 - 9 3 Sets the depth of ATT. Depth is equal to 2 to the power of the number entered.
ATT Window Address Width 10 - 63 16 Sets the number of BAS address bits to be used directly.

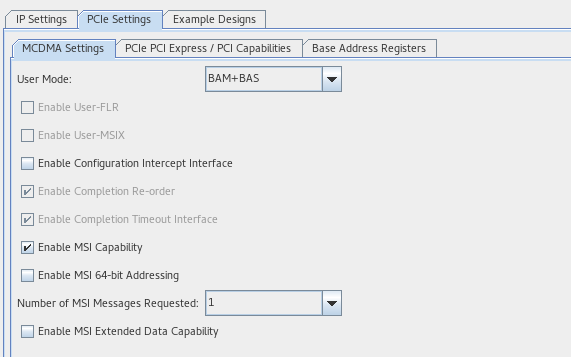

Figure 14. Endpoint BAM + BAS Mode Parameters
Table 21.  Endpoint BAM + BAS Mode Parameters
Parameter Value Default Value Description
Enable Configuration Intercept Interface On / Off Off Select to enable the user application to detect the occurrence of a CFG request on the link and to modify its behavior via the configuration intercept interface. Applicable to Endpoint only.
Enable Completion Reorder On On Enables completion reorder.
Enable Completion Timeout Interface On On Enables completion timeout interface.
Enable MSI Capability On / Off Off Enables or disables MSI capability.
Note: MSI is supported only in the BAS and BAM + BAS modes.
Enable MSI 64-bit Addressing On / Off Off Enables or disables 64-bit MSI addressing.
Number of MSI Messages Requested 1, 2, 4, 8, 16, 32 1 Sets the number of messages that the application can request in the multiple message capable field of the Message Control register.
Enable MSI Extended Data Capability On / Off Off Enables or disables MSI extended data capability.
