3.2.2.1.1. Multichannel DMA Mode

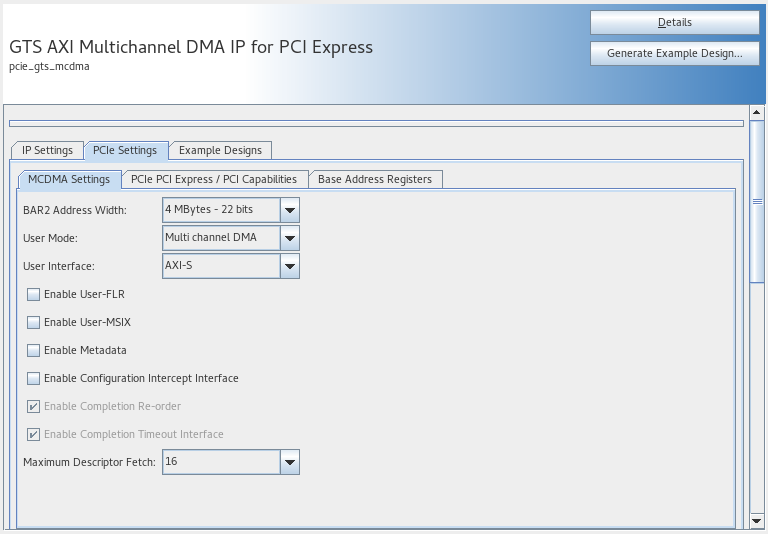

Figure 8. Multichannel DMA Mode Parameters
Table 16.  Multichannel DMA Mode Parameters
Parameter Value Default Value Description
BAR2 Address Width

128 Bytes – 7 bits

. . .

8 EBytes – 63 bits

 4 Mbytes – 22 bits

AXI4-Lite PIO interface is available in Multichannel DMA mode for the Host to perform MMIO read/write to user logic. This parameter sets the BAR2 address width used for the PIO functionality.

Note: This parameter is available only in Multichannel DMA user mode.
User Mode

Multichannel DMA

Bursting Master

Bursting Slave

BAM+BAS

BAM+MCDMA

BAM+BAS+MCDMA

 Multichannel DMA

This parameter allows you to configure the mode of operation for the user application:

  • Bursting Master (BAM) and Bursting Slave (BAS) offer bursting AXI-MM capabilities without DMA functionality
Note: Only Bursting Master, Bursting Slave and BAM+BAS options are available in Root Port Mode.
User Interface

AXI-S

AXI-MM

 AXI-S Sets the type of H2D/D2H DMA user interface.
Enable User-FLR On / Off Off

Select to enable the User FLR interface, which allows the passing of FLR signals to the user side application.

Note: User FLR is not supported in Bursting Master, Bursting Slave, and BAM+BAS modes.
Enable User-MSIX On / Off Off

The User MSI-X interface enables the user application to initiate interrupts through the MCDMA IP.

Note: User MSI-X is not supported in Bursting Master, Bursting Slave, and BAM+BAS modes.
Enable Metadata On / Off Off

Enables or disables 8-byte metadata.

Metadata is the 8-byte user application data that is transferred to and from the device via the DEST address field (for H2D DMA) and SRC address field (for D2H DMA) in the AXI Streaming mode.
Enable Configuration Intercept Interface On / Off Off Select to enable the user application to detect the occurrence of a CFG request on the link and to modify its behavior via the User Configuration Intercept Interface.
Enable Completion Re-order On On Enables completion reorder.
Enable Completion Timeout Interface On On Enables the completion timeout interface.
Maximum Descriptor Fetch

16

32

64

 16 Sets the maximum descriptors that are fetched per D2H prefetch channel. Applicable to the AXI-S interface type.
