3.2.2.2.1. PCIe Device

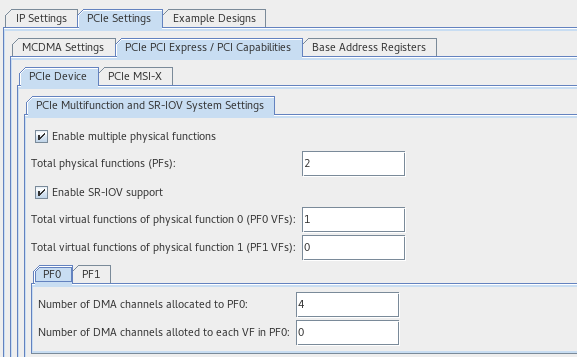

Figure 17. PCIe Multifunction and SR-IOV System Settings Parameters
Table 24.  PCIe Multifunction and SR-IOV System Settings Parameters
Parameter Value Default Value Description
Enable multiple physical functions On / Off Off Enables multiple physical functions.
Total physical functions (PFs) 1 - 4 1 Sets the number of physical functions. This parameter is available when Enable multiple physical functions is On.
Enable SR-IOV support On / Off Off Enables SR-IOV.
Total virtual functions of physical function <n> (PF<n> VFs) 0 - 256 0 Sets the number of VFs to be assigned to Physical Function <n>. This parameter is available when Enable SR-IOV support is On.

By default, only the parameter for physical function 0 appears. If you change the value of Total physical functions (PFs), other parameters appear corresponding to the number of physical functions enabled.
Number of DMA channels allocated to PF<n> 0 - 256 4 Sets the number of DMA channels allocated to PF<n>. The GTS AXI MCDMA IP supports up to 256 DMA channels across all PFs and VFs.
Number of DMA channels allocated to each VF in PF<n> 0 - 256 0 Sets the number of DMA channels allocated to each VF in PF<n>. The GTS AXI MCDMA IP supports up to 256 DMA channels across all PFs and VFs.
