3.2.2.1.5. BAM + MCDMA Mode

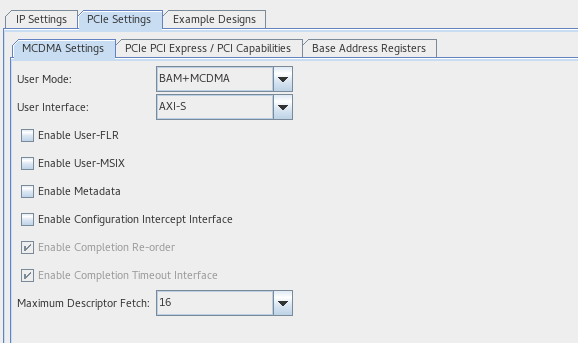

Figure 15. BAM + MCDMA Mode Parameters
Table 22.  BAM + MCDMA Mode Parameters
Parameter Value Default Value Description
User Interface AXI-S

AXI-MM

 AXI-S Sets the type of DMA user interface.
Enable User-FLR On / Off Off Select to enable the User FLR interface, which allows the passing of FLR signals to the user side application.
Enable User-MSIX On / Off Off The User MSI-X interface enables the user application to initiate interrupts through the MCDMA IP.
Enable Metadata On / Off Off

Enables or disables 8-byte metadata.

Metadata is the 8-byte user application data that is transferred to and from the device via the DEST address field (for H2D DMA) and SRC address field (for D2H DMA) in the AXI Streaming mode.
Enable Configuration Intercept Interface On / Off Off Select to enable the user application to detect the occurrence of a CFG request on the link and to modify its behavior via the configuration intercept interface.
Enable Completion Re-order On On Enables completion re-order.
Enable Completion Timeout Interface On On Enables completion timeout interface.
Maximum Descriptor Fetch 16

32

64

 16 Sets the maximum descriptors that are fetched per D2H prefetch channel. Applicable to the AXI-S interface type.
