2.1.1.3.1. Generating a Custom Memory Preset File for DDR4
To generate a custom preset file for DDR4, follow these steps:

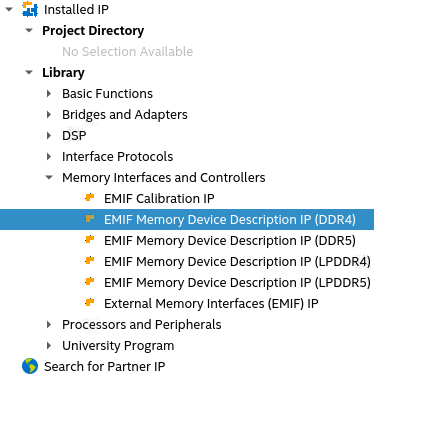

- In the IP Catalog window, select Memory Device Description IP (DDR4).

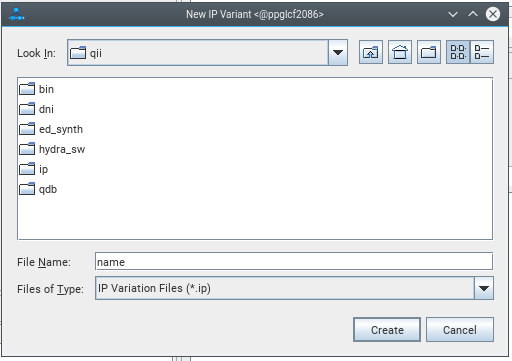

- Type the name for the IP instance and click Create.
- Refer to the images below for the steps in creating and saving the custom presets file:

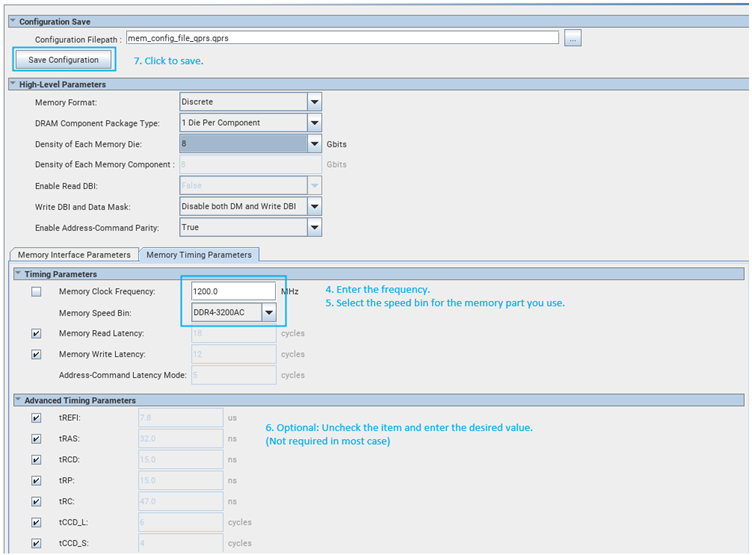

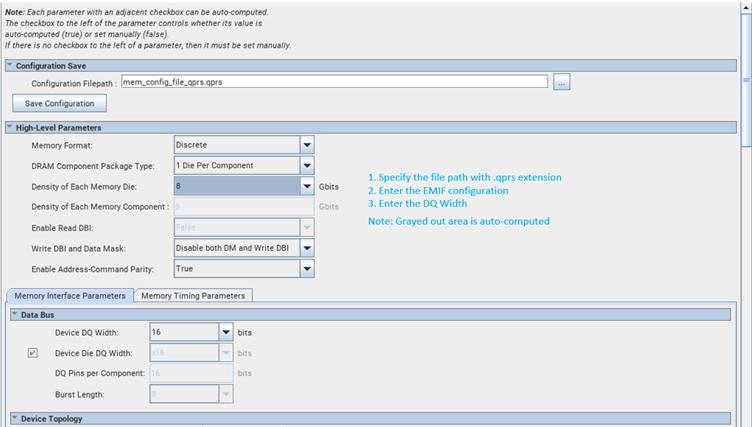

Figure 8. Parameterizing EMIF Memory Device Description IP (DDR4) – Part 1Figure 9. Parameterizing EMIF Memory Device Description IP (DDR4) – Part 2
