2.1. Creating an EMIF Project
You must create an Quartus® Prime project before generating the Agilex™ 5 EMIF IP and design example.
- Launch the Quartus® Prime software and select File > New Project Wizard. Click Next.

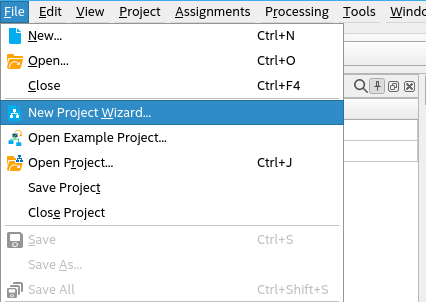

Figure 2. File Menu
- Specify a directory (<user project directory>), a name for the Quartus® Prime project (<user project name>), and a top-level design entity name (<user top-level instance name>) that you want to create.
- Verify that Empty Project is selected.
- Under Family, select Agilex™ 5 (E-Series).
- Under Name filter, type the device part number.
- Under Available devices, select the appropriate device.

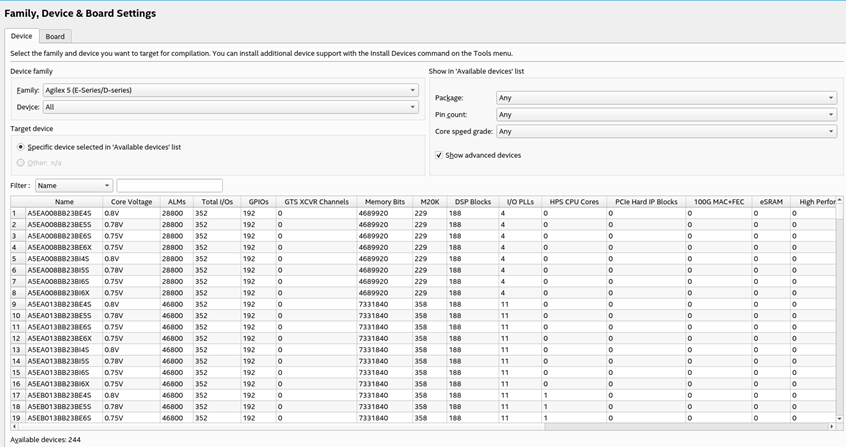

Figure 3. Family, Device, and Board Settings
- Click Finish.
