2.2.1. Agilex™ 5 EMIF Parameter Editor Guidelines
This topic provides high-level guidance for parameterizing the tabs in the Agilex™ 5 EMIF IP parameter editor.
Parameter Editor Tab | Guidelines |
---|---|
High Level Parameters | Ensure that you correctly enter the following parameters:
|
PHY | Select the desired mode to connect the EMIF IP to user logic:
|
Analog Properties | Allows you to modify the termination, drive strength, and VREF settings. |
Memory Device Preset Selection | Refer to the data sheet for your memory device and select the applicable preset. |
Controller Configuration | Set the controller parameters according to the desired configuration and behavior for your memory controller. |
AXI Settings | Set the AXI4 data width interface parameters according to your desired configuration. |
Additional Parameters | Enable you to perform DQ swizzling. Refer to Configuring DQ Pin Swizzling for more information. |
Example Design | The Example Design tab lets you select which HDL to use for the top-level files, and which file sets you want the design example to generate. You can also perform the following:
|

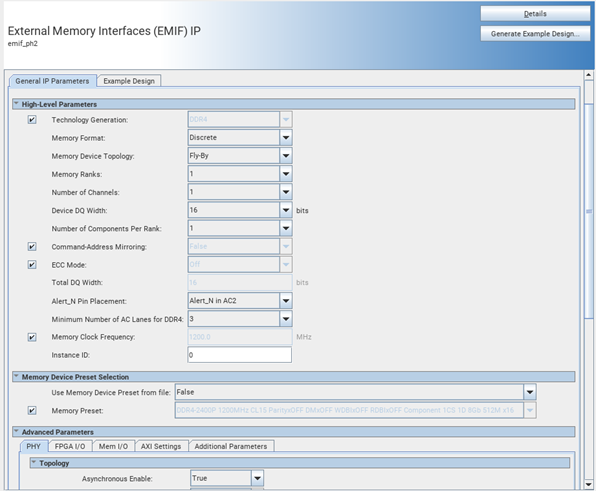

Figure 19. External Memory Interfaces IP Parameter Editor
For detailed information on individual parameters, refer to the appropriate protocol-specific chapter in the External Memory Interfaces (EMIF) IP User Guide: Agilex™ 5 FPGAs and SoCs .
