5.10. CPRI PHY Reconfiguration Interface

Table 24.  CPRI PHY Reconfiguration Interface
Port Name Width (Bits) Domain Description
i_reconfig_cpri_addr[3:0] 4 i_reconfig_clk Address for GTS CPRI PHY CSRs in the selected channel. Using word addressing format.
i_reconfig_cpri_read 1 i_reconfig_clk Read command for GTS CPRI PHY CSRs in the selected channel.
i_reconfig_cpri_write 1 i_reconfig_clk Write command for GTS CPRI PHY CSRs in the selected channel.
o_reconfig_cpri_readdata[31:0] 32 i_reconfig_clk Read data from reads to GTS CPRI PHY CSRs in the selected channel.
o_reconfig_cpri_readdatavalid 1 i_reconfig_clk Read data from GTS CPRI PHY CSRs is valid in the selected channel.
i_reconfig_cpri_writedata[31:0] 32 i_reconfig_clk Data for writes to GTS CPRI PHY CSRs in the selected channel.
o_reconfig_cpri_waitrequest 1 i_reconfig_clk Avalon® memory-mapped interface stalling signal for operations on GTS CPRI PHY CSRs in the selected channel.

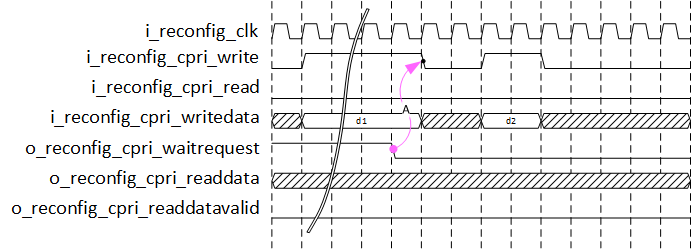

Figure 11. Writing to CPRI PHY Reconfiguration
Figure 12. Reading from CPRI PHY Reconfiguration
