2.2.7.3.1. Implementing Clock Gating

To implement clock gating, you access the USER_CLKGATE signal by use of the following Intel® FPGA IP available in the Intel® Quartus® Prime software:
  • Reset Release Intel® FPGA IP—holds your design in reset until configuration is complete by gating clocks, resets, or write enables. This IP outputs the nINIT_DONE signal. When nINIT_DONE is low, the device is no longer in configuration mode.
  • Clock Control Intel® FPGA IP—uses the inverted nINIT_DONE signal as a clock enable signal.

Follow these steps to implement clock gating:

  1. Open a design in the Intel® Quartus® Prime software.
  2. In IP Catalog, type reset release in the search field, and double-click the Reset Release Intel® FPGA IP .
  3. Specify appropriate parameters for your configuration in the parameter editor, and then click Generate HDL.
  4. Repeat steps 2 and 3 to add the Clock Control Intel® FPGA IP to your project. Prior to IP generation, specify the following options for the IP in the parameter editor:
    • Under Clock Gating, turn on the Clock Enable option.
    • For Clock Enable Type, select Root Level.
    • For Enable Register Mode, select Negative Latch.
  5. Connect the Reset Release and Clock Control Intel® FPGA IP together:
    • To gate the clocks, use inverted nINIT_DONE as the enable input to the Clock Control Intel® FPGA IP.
    • If initial conditions are required, Intel recommends that the Clock Control Intel® FPGA IP also use root clock gating.

    The following figure shows proper connections between the Reset Release and Clock Control Intel® FPGA IP to ensure accurate initial conditions after configuration:

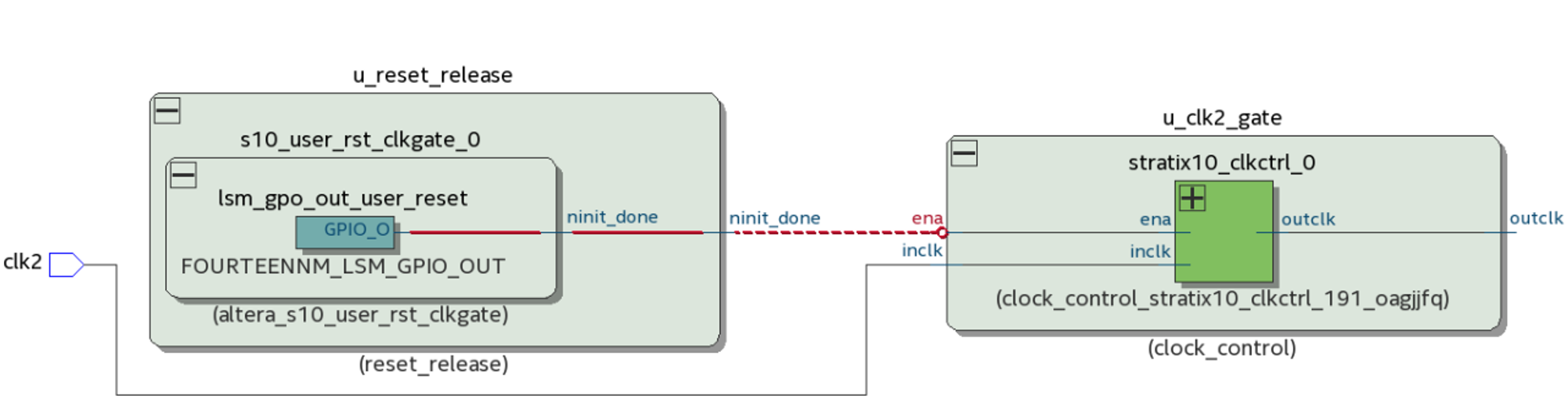

    Figure 19. Connections between the Reset Release (reset_release) and Clock Control (clock_control) Intel® FPGA IP Cores

    The Clock Control Intel® FPGA IP uses the ena signal to perform the clock gating function. The clock signal on the output of the Clock Control Intel® FPGA IP is then safe for use with the initialized registers (ALM and Hyper-Registers).
