2.2. Using the Compilation Dashboard

The Compilation Dashboard provides immediate access to settings, controls, and reporting for each stage of the compilation flow.

The Compilation Dashboard appears by default when you open a project, or you can click Compilation Dashboard in the Tasks window to re-open it.

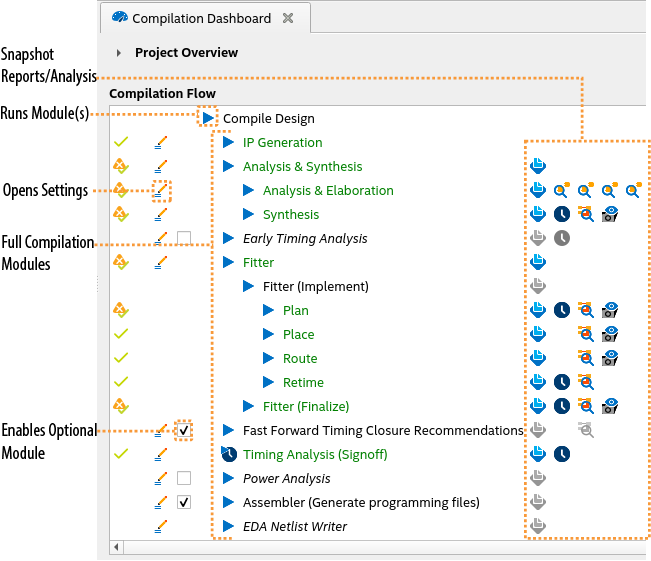

Figure 2. Compilation Dashboard
  • Click the Pencil icon to edit settings for that stage of the compilation flow.
  • Click any Compiler stage to run one or more Compiler stage.

    You can click a Compiler stage to resume an interrupted compilation flow provided no compilation settings have changed from the initial start of the compilation flow.

  • Click the Report, RTL Viewer, Technology Map Viewer, Timing Analyzer, or Snapshot Viewer icons for analysis of stage results.

As the Compiler progresses through the flow, the dashboard updates the status of each module, and enables icons that you can click for reports and analysis. The dashboard is also updated if you run your compilation flow from a command line with the quartus_sh --flow command.
