11.7.4.3.6. Debugging VREFIN Calibration Failure

  1. Ensure that the VCCIO of the failing group is powered up to VCCIO=1.2V at the FPGA side.
  2. Regenerate the EMIF IP with other Initial VREFIN values. It defaults to 68% when using the default FPGA I/O settings.

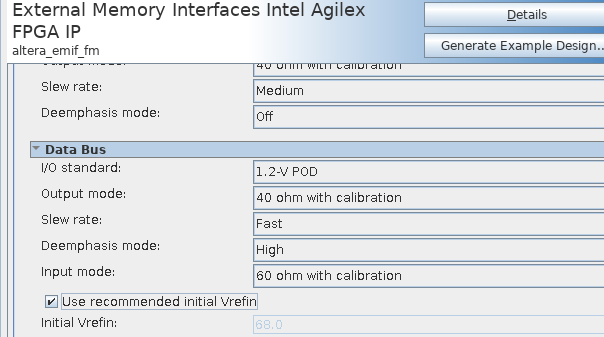

    Figure 178. Changing the Initial VREFIN Value
