2.4.1.5.1. Viewing Clock Details in the Chip Planner

  1. Open the Chip Planner (Tools > Chip Planner).
  2. In the Task pane, under Clock Reports, double-click Report Clock Details.
    Figure 29. Chip Planner Task Pane

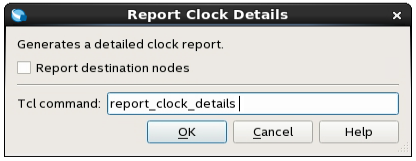

    Figure 30. Report Clock Details
  3. Click OK.
    The Report pane generates the Clock folder.
  4. Expand the Clock folder and select Used spine clock regions to highlight on the Chip planner.
  5. In the Layers Settings pane, turn on Regional/Periphery clock region to see whether used spine clock regions are within.

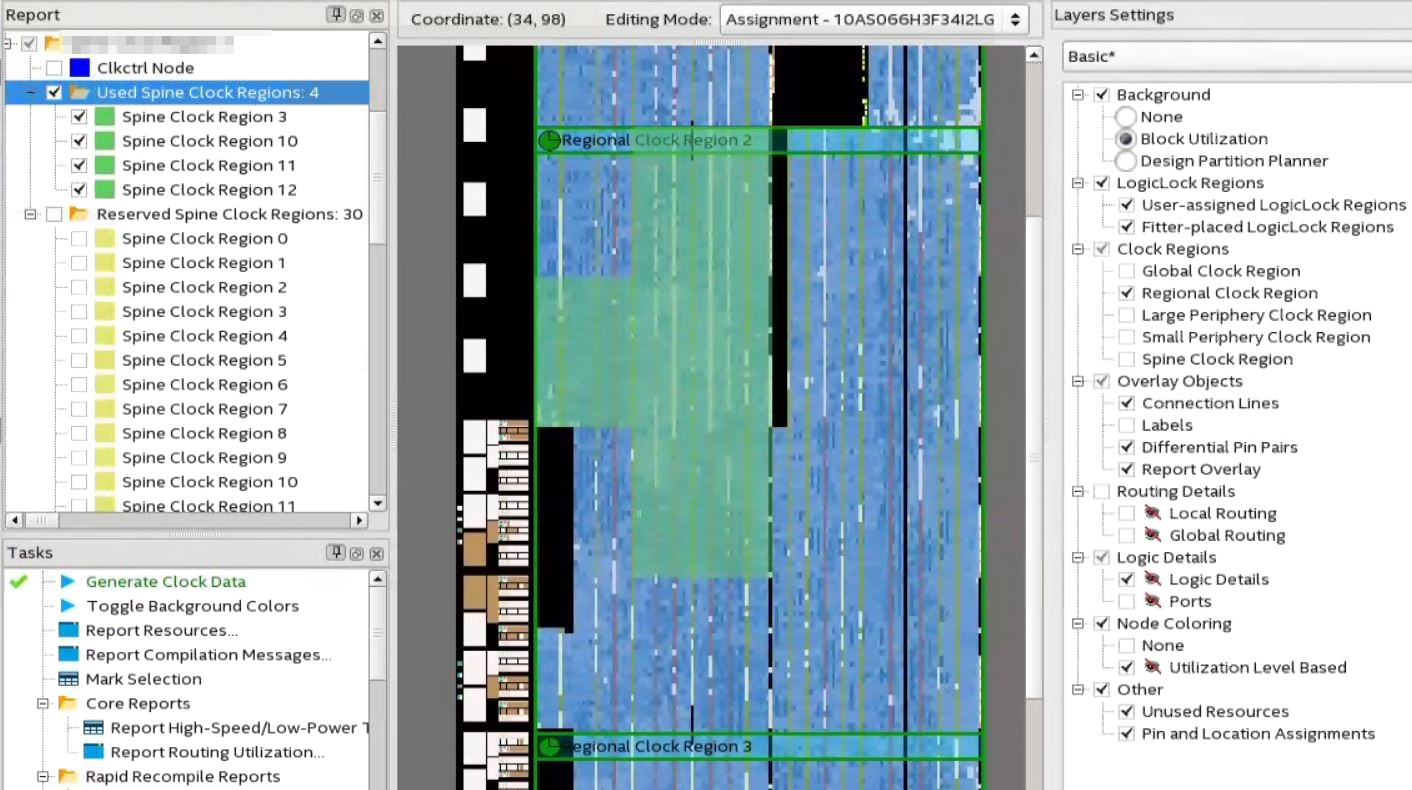

    Figure 31. Clock Highlight in Chip PlannerThis example uses a Regional clock Region instead of a global signal.
