Review the FPGA Optimization Report

The FPGA optimization report provides suggestions on how you can modify kernels to increase performance. For detailed information about generating the report, refer to the FPGA Flow section of the Intel® oneAPI Programming Guide.

Navigate to the <project_dir>/reports/ directory and review one of the following files of your application to determine whether the estimated kernel performance data is acceptable:

  • report.html: You can view this file using Internet browsers, such as Microsoft* Edge, Google* Chrome, or Mozilla* Firefox.
  • <design_name>.zip: Use the Intel® oneAPI FPGA Reports tool described in the following sections to view the optimization reports:

Launching the Intel® oneAPI FPGA Reports Tool

The Intel oneAPI FPGA Reports tool is installed with the Intel® oneAPI Base Toolkit. On a Linux system, you can invoke this tool using the fpga_report command on the command-line interface. On the Windows system, invoke the fpga_report.exe from the Intel® oneAPI Base Toolkit install path.

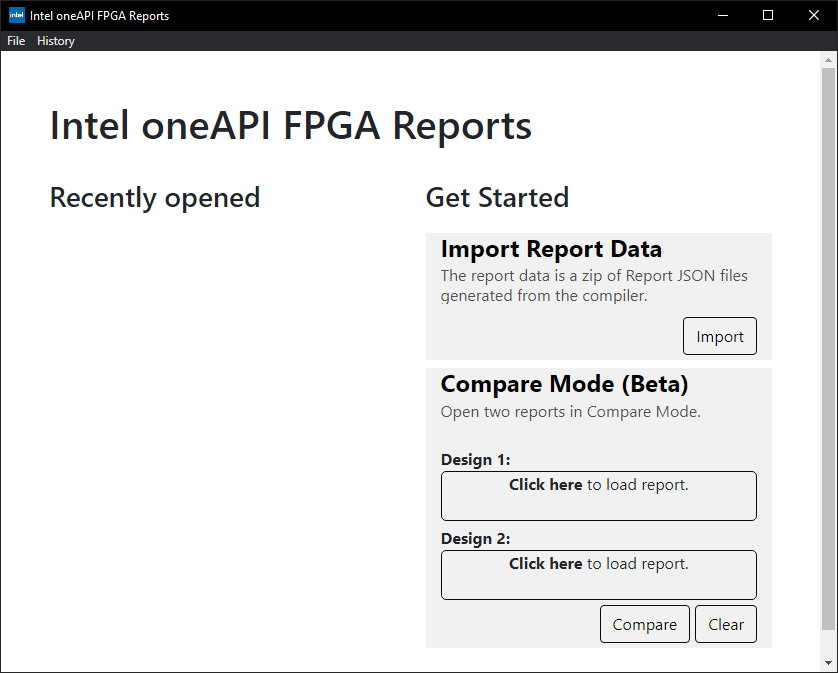

When you invoke the tool, the Intel® oneAPI FPGA Reports GUI displays as shown in the following image:

Intel® oneAPI FPGA Reports Tool

Loading Your Design's Optimization Report

To import or load your design's optimization report in the Intel® oneAPI FPGA Reports interface, follow these steps:

  1. Click File > Import Data on the toolbar. Alternatively, in the Reports interface, under Get Started > Import Report Data, click Import.
  2. Navigate to the <project_dir>/reports/ directory.
  3. Select the <design_name>.zip file.
  4. Click Open. The report loads in the Intel® oneAPI FPGA Reports interface.

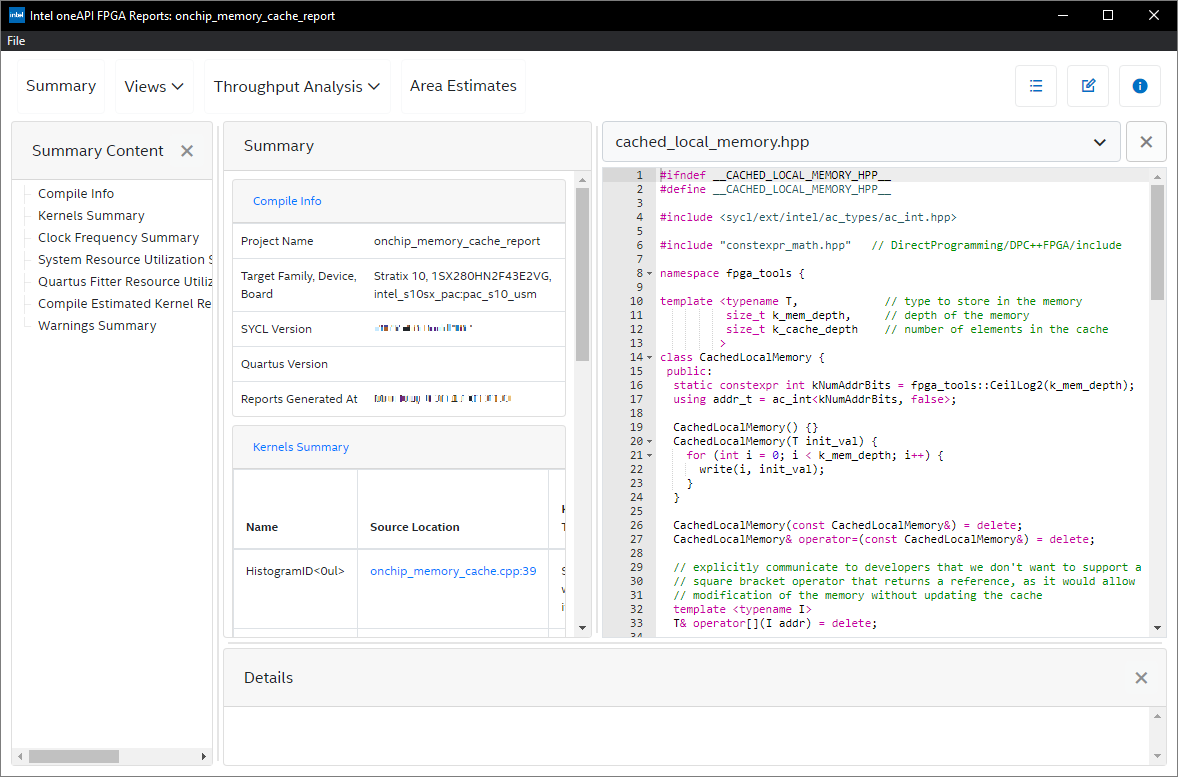

Sample Optimization Report in the Intel® oneAPI FPGA Reports Tool

Comparing Reports (Beta)

The Intel® oneAPI FPGA Reports tool allows you to compare two optimization reports of the same design or different designs. You can use this feature in one of the following ways:

  • After launching a report, launch the second report for comparison using these steps:
    1. Click File > Compare Against,
    2. Navigate to the <project_dir>/reports directory.
    3. Select the <design_name>.zip file.
    4. Click Open. The report launches in the Intel® oneAPI FPGA Reports interface.
  • If you want to directly compare two designs, then from the main Reports interface, under Compare Mode (Beta), perform these steps:
    1. Under Design 1, click Click here, navigate to the <project_dir>/reports directory and select the <design_name>.zip file of the first design.
    2. Under Design 2, perform steps described in step 1 and select the second design.

In both methods, the interface launches two optimization reports in the comparative mode as shown in the following image:

Compare Mode (Beta) in the Intel® oneAPI FPGA Reports Tool

The following reports also open up in the comparative mode:

NOTE:

For this beta release, the Summary View and Loop Analysis have a comparative mode. Future oneAPI releases might support more views. For views not supported in the comparative mode, a view for each design is generated and you can identify the designs by the "Design #" text in the view name.

Parent topic: Analyze the FPGA Early Image
