Hotspot View

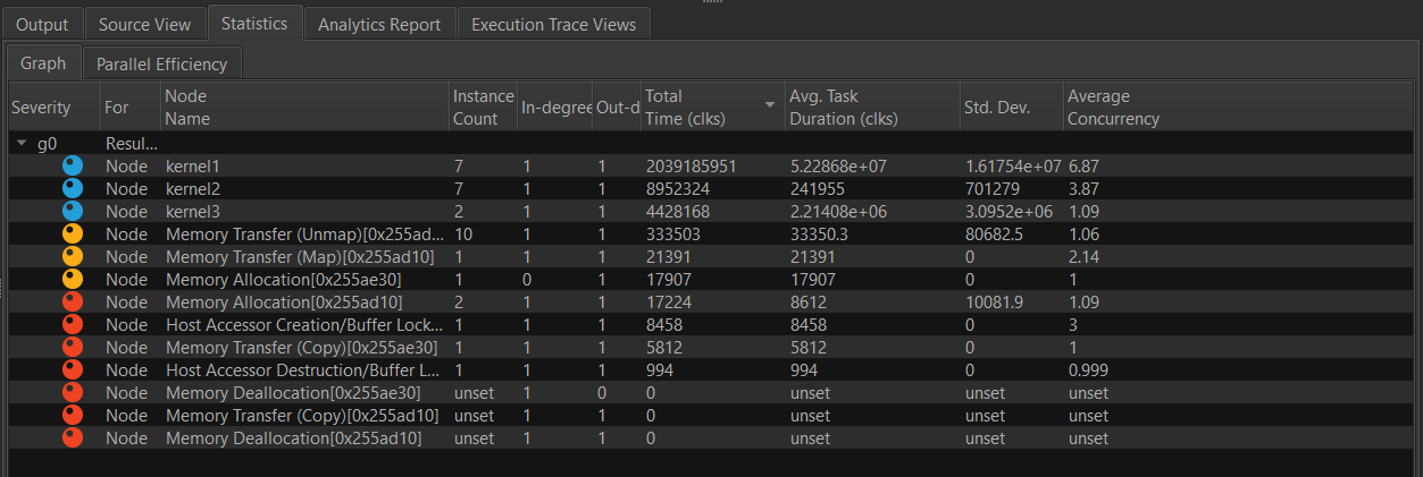

Flow Graph Analyzer supports hot-spot views, but the data is limited to the objects in the graph. The data collection for Flow Graph Analyzer-based collectors is currently limited to time-based traces. To obtain the hotspot view, select the Statistics tab, and click the Graph pane for the data.

Parent topic: Examine a SYCL Application Graph
