9.3. Step 3: Adding RTL Design Files to the pr_sim Revision

To complete the pr_sim revision, create and add the RTL design files to the revision to support functional simulation. For this design example, add design files from the other project revisions, rather than creating the files from scratch.
  1. In the Quartus® Prime Pro Edition software, click Project > Add/Remove Files in Project.
  2. In the Files tab, add the following design files for the pr_sim revision:
    • top.sv
    • pr_wrapper.sv
    • and_gate.sv
    • counter.sv
    • fsm.sv

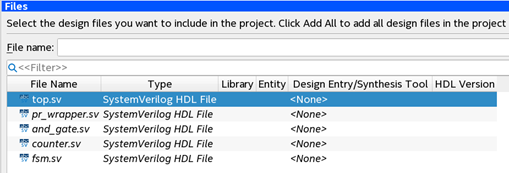

    Figure 11. Adding RTL Design Files to the pr_sim Revision
  3. Click OK to close the Settings dialog box.
