9.2. Step 2: Creating a Project Revision for PR Simulation

You can simplify the setup of a PR simulation design by creating another project revision within your existing Quartus® Prime project. This extra revision is helpful because it can help to simplify the generation and use of the gate-level PR simulation models for simulation of each persona.

To create a project revision for the PR simulation design example:
  1. In the Quartus® Prime Pro Edition software, click Project > Revisions.
  2. In the Revisions dialog box, double-click <<new revision>>.
  3. Specify the following values for the PR simulation project revision:
    Table 3.   PR Simulation Project Revision Settings
    Setting Value for Design Example

    Revision name

    pr_sim

    Based on revision

    Leave blank

    Revision type

    Leave blank

    Set as current revision

    Turn on (checked)

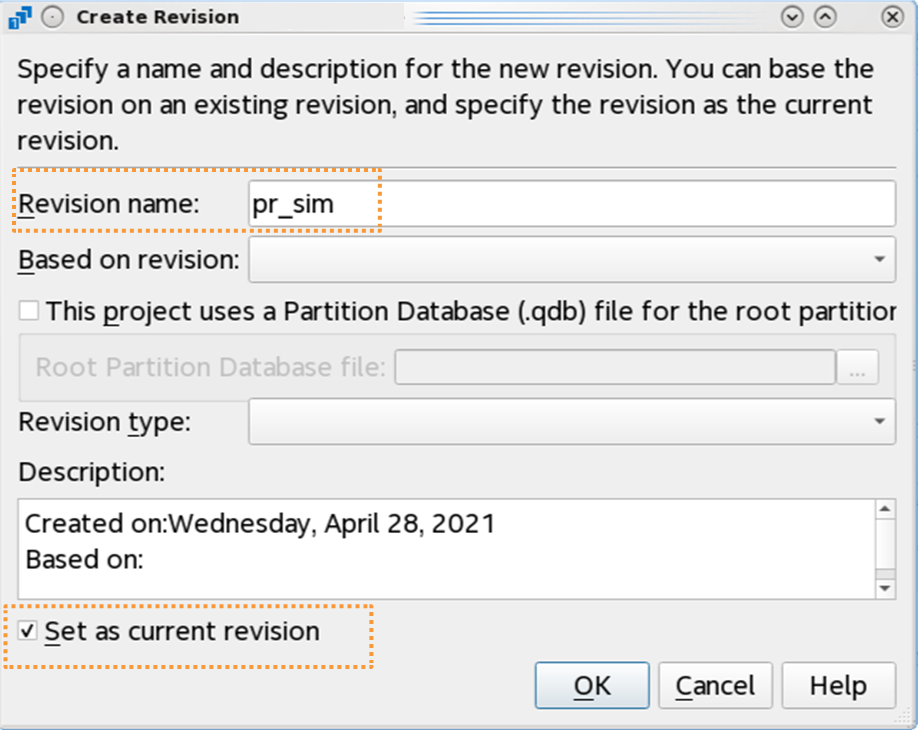

    Figure 10. Creating pr_sim Project Revision
  4. Click OK to save your settings.
  5. Select the correct FPGA OPN for you project.
  6. In the Project Navigator window, change the Top-Level Entity from pr_sim to top_tb.
