4.1.1.1.1. Multichannel DMA Mode

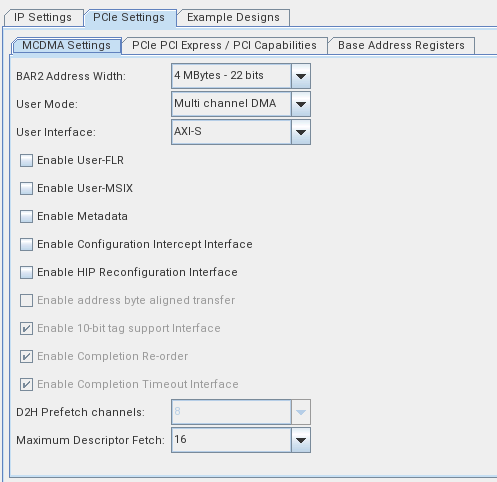

Figure 3. Multichannel DMA Mode Parameters
Table 11.  Multichannel DMA Mode Parameters
Parameter Value Default Value Description
BAR2 Address Width

128 Bytes – 7 bits

. . .

8 EBytes – 63 bits

4 Mbytes – 22 bits

Sets the BAR2 size used for PIO functionality.

Note: This parameter is available only in Multichannel DMA user mode.
User Mode

Multichannel DMA

Bursting Master

Bursting Slave

BAM+BAS

BAM+MCDMA

BAM+BAS+MCDMA

Multichannel DMA
This parameter allows you to configure the mode of operation for the user application:
  • Bursting Master (BAM) and Bursting Slave (BAS) offer bursting AXI-MM capabilities without DMA functionality
User Interface

AXI-S

AXI-MM

AXI-S

Sets the type of DMA user interface.

You can select either the AXI Stream or AXI Memory-Mapped interface for DMA.
Enable User-FLR On / Off Off

Select to enable User FLR interface which allows passing of FLR signals to the user side application.

Note: User FLR is not supported in Bursting Master, Bursting Slave, and BAM+BAS modes.
Enable User-MSIX On / Off Off

User MSI-X interface enables the user application to initiate interrupts through the MCDMA IP.

Note: User MSI-X is not supported in Bursting Master, Bursting Slave, and BAM+BAS modes.
Enable Metadata On / Off Off

Enables or disables 8-byte metadata.

Metadata is the 8-byte user application data that is transferred to and from the device via the DEST address field (for H2D DMA) and SRC address field (for D2H DMA) in the AXI Streaming mode.

Note: Metadata is not supported in Bursting Master, Bursting Slave, and BAM+BAS modes.
Enable Configuration Intercept Interface On / Off Off

Select to enable user configuration intercept interface.
Enable HIP Reconfiguration Interface On / Off Off

Select to enable Hard IP reconfiguration interface.
Enable address byte aligned transfer Off Off

This option is not supported in the current release.

Enable 10-bit tag support interface On On

Enables 10-bit tag support interface
Enable Completion Re-order On On

Enables completion re-order
Enable Completion Timeout Interface On On

Enables completion timeout interface
D2H Prefetch channels 8

16

32

64

128

256

512

8 Sets the number of D2H prefetch channels for the AXI-S interface type. IP Parameter Editor automatically selects the value based on the DMA channel count.
Maximum Descriptor Fetch 16

32

64

16 Sets the maximum descriptors that are fetched per D2H prefetch channel. Applicable to the AXI-S interface type.
