Step 4: Tapping Signals in the Implementation Persona

To add signals from the implementation persona to the Signal Tap logic analyzer:
  1. Set blinking_led_slow as the current revision in the Intel® Quartus® Prime GUI.
  2. Open the stp_slow.stp file.
  3. Double-click the Setup tab to open the Node Finder.
  4. Set the following search fields, and then click Search
    Field Value
    Named *
    Filter Signal Tap: pre-synthesis
    Look in top|u_blinking_led
    Figure 13. Search Parameters to Find Signals
    This action displays all the nodes that you can probe in this revision.
  5. From the Matching Nodes list, select led_three_on, led_two_on, and counter[2:0], counter[27], and counter[23], and then click >.
    This action adds the signals to the Nodes Found list.

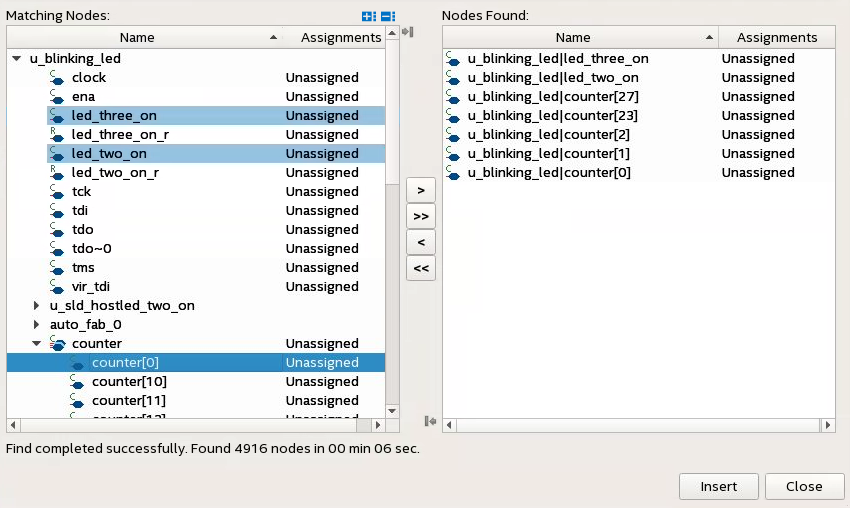

    Figure 14. Signals in Nodes Found List
  6. Click Insert.
The signals now appear in the Instance Manager pane of the Signal Tap GUI.
