4.11.1. Power Supply Options

There are two power supply options provided for the Intel® Cyclone® 10 LP FPGA Evaluation Board. The first is USB powered and the second is external AC/DC adapter powered. These two options can be used for different applications. There is an ORING circuit on-board to select suitable power source from USB power or DC jack.

USB-Power

A standard A to Mini-B USB Y-Cable is shipped with the evaluation board. There are three USB ports as listed in the following table.
Table 27.  USB Ports
Port Description
P1
  • USB Standard A Plug.
  • Connects to USB host
  • Used for both USB signals and USB VBUS 5 V
P2
  • Complementary USB Standard A plug for additional USB VBUS 5 V power.
  • No signal connection.
P3
  • USB Mini-B Plug
  • Connected to USB Port J17

When P1 and P2 are plugged into USB Host ports at the same time, it can supply up to 1A current to the Intel® Cyclone® 10 LP FPGA Evaluation Board.

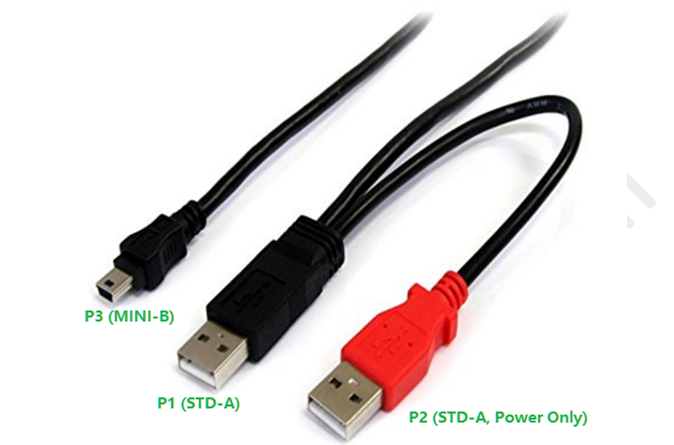

Figure 11. USB Y-Cable

AC/DC Adapter Power

The DC Jack uses Wurth Elektronik P/N 694106301002 as power input connector.

The required DC mate plug is required to meet the parameters below
  • Inner Diameter (ID): 2.1 mm
  • Outer Diameter (OD): 5.5 mm
  • Voltage: 5 V
  • Center Polarity: Positive (5 V)
CAUTION:
Use 5 V adapter for DC Jack J12 only. Components on the board can get damaged by power supplies with greater voltage.
