External Memory for Warp IP

The IP requires access to two separate areas of external memory: one for its input and output video buffers and one for its coefficient tables. The processor system running the Warp Software API must be able to access the coefficient tables but does not need access to the buffer area.

Memory Space Allocation in External Memory

Table 64.   Warp IP Video Buffer Memory RegionThe table defines how much space is required in external memory by the Warp IP for the video buffer region. This space depends on the size of the images to be processed in a system. It is defined by the Space allocated for each frame buffer in memory parameter. Six buffers require space in total: four input and two output.
Buffer Space Configuration Region Size (MB) Memory Region Required Alignment (multiples of)
SD buffer size (1024x1024) 24 0x0180_0000 0x0200_0000
HD buffer size (2048x2048) 96 0x0600_0000 0x0800_0000
UHD buffer size (4096x4096) 384 0x1800_0000 0x2000_0000

The IP passes the base address of the memory region allocated to the frame buffers to the software API using the ram_addr element in the structure.

The memory region that the coefficient tables require is related to the number of warp engines, the resolution of the images, and the type of warp.

Table 65.  Warp IP Coefficient Tables Memory RegionThe table shows the maximum size of the coefficient table memory region, per engine.
Warp Engines Region Size (MB) Memory Region Required Alignment (multiples of)
1 16 0x0100_0000 0x0100_0000
2 32 0x0200_0000 0x0200_0000

Bandwidth to External Memory

The performance of the interface from the Warp IP to the external memory is important for the correct operation of a system using the Warp IP.

The Warp IP generates a substantial amount of memory traffic. It has four video streams passing to and from external memory. In addition, each engine has three read streams to access the coefficient tables. All these streams combine to make Warp IP memory accesses complex. The streams affect how much efficiency you can obtain when accessing DDR4 memory.

The Warp IP memory controller mitigates potential inefficiencies caused by these complex access patterns. It uses burst lengths of 8 beats for all its read and write accesses to improve the burst performance to DDR4 memory. It also attempts to cluster individual read and write bursts together to eliminate some of the issues with read and write turnaround dead time at the DDR4 interface.

These memory access patterns depend on applying the image transform. Some complex image transforms may reduce memory traffic because of the skip region functionality. One of the worst transforms for generated memory traffic is a unity warp that gives a 1:1 mapping between input and output pixels.

The operation of the Warp IP is easier to predict when it is the only user of the DDR4 memory in a system. When other high bandwidth accesses are made to the memory at the same time as the Warp IP, ensure that any interactions don’t adversely affect performance.

Example system sharing access to memory

In this example system the Warp IP shares the DDR4 interface with a frame buffer in a system that processes UHD frames at 60 fps. The system runs on an Intel Arria 10 GX Development Kit with the DDR4 EMIF running a 2,133 MHz interface to a DDR4 memory.

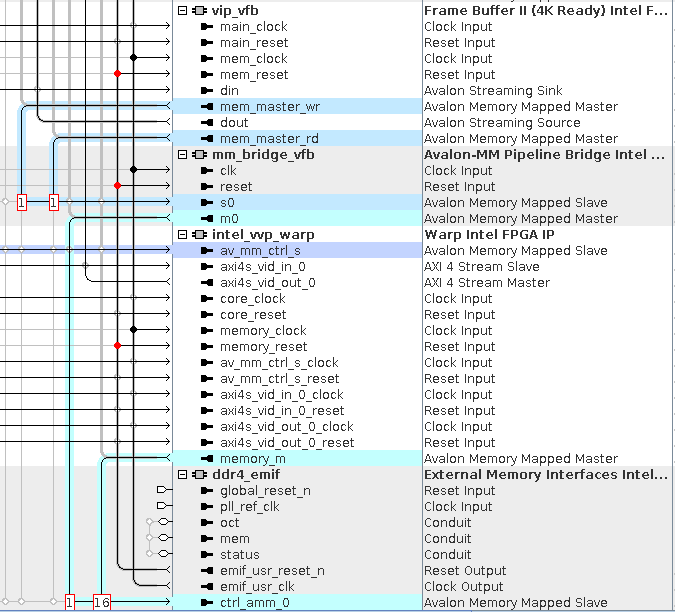

Figure 14. Warp and Video Frame Buffer Platform DesignerThe figure shows the Platform Designer connectivity where the Frame Buffer II component is sharing access to the DDR4 EMIF with the Warp IP. The Frame Buffer is part of the same video processing pipeline as the Warp IP.

For this system to work:

  • Configure Frame Buffer to use bursts of 32 beats for read and write.
  • Configure Frame Buffer to use read and write FIFO depths of 128
  • Set the arbitration weighting at the front end of the DDR4 EMIF to 16:1 in favor of the Warp IP (versus the Frame Buffer’s read and write interfaces connected through the mm_bridge_vfb component).
  • Set the Maximum pending read transactions parameter in the pipelined transfers section of the Avalon Memory Mapped agent port to be at 8.
  • Set Limit interconnect pipeline stages to for the domain at the front end of the DDR4 EMIF to 4.

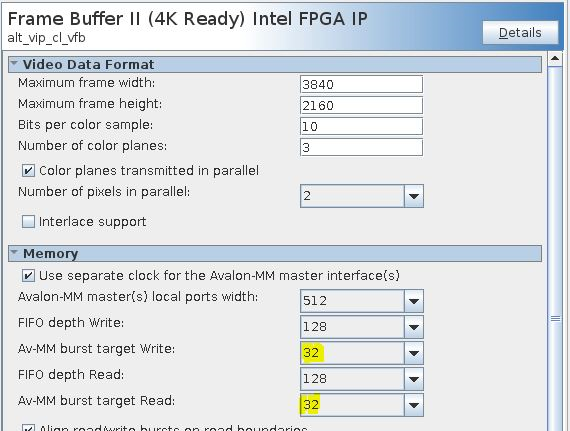

Figure 15. Video Frame Buffer Parameterization

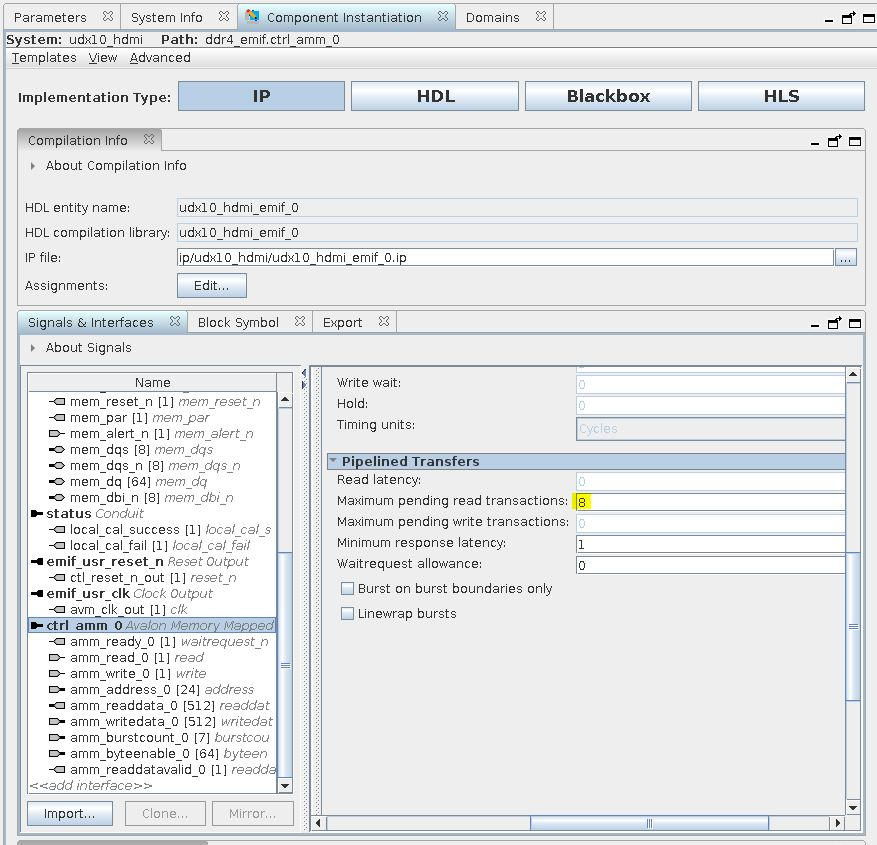

Figure 16. Maximum Pending Read Transactions

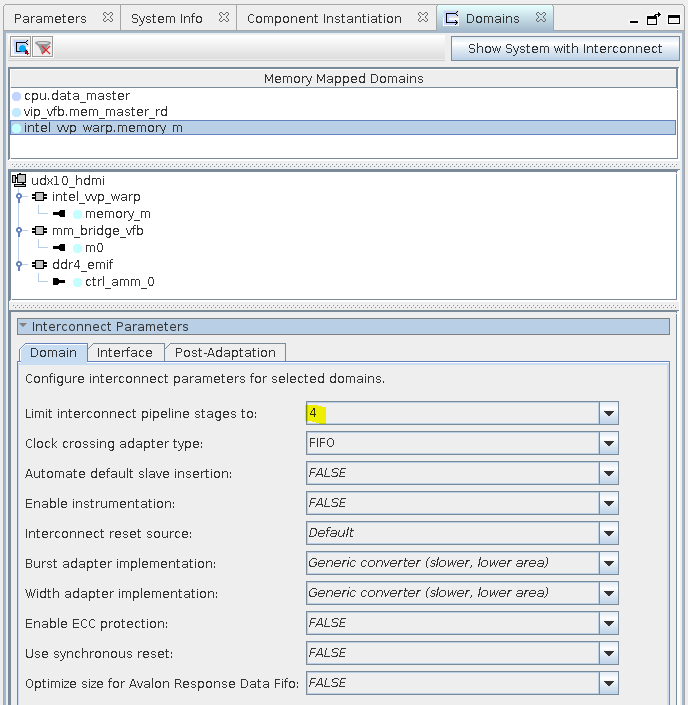

Figure 17. Limit interconnect pipeline stages to

Multiple Warp IPs sharing access to memory

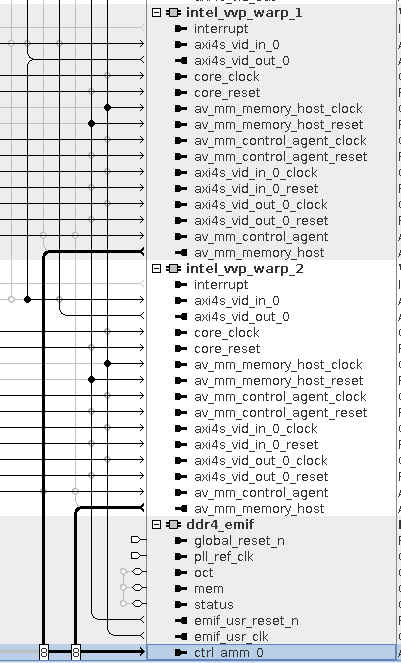

Figure 18.  Multiple Warp IPs sharing access to memory The figure shows an example with two Warp IPs that share a DDR4 interface. To match the burst access patterns of the Warp IP, set the arbitration values at the combining interface to 8.
