1.2. Generating the Design

Procedure

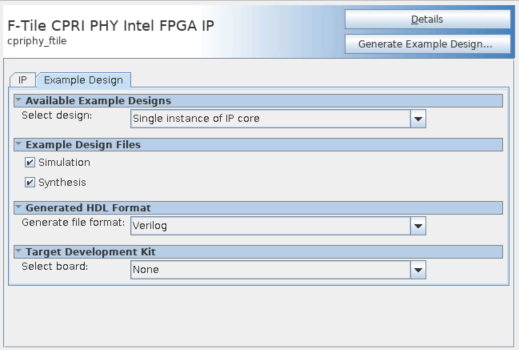

Example Design Tab in IP Parameter Editor

To create an Intel® Quartus® Prime Pro Edition project:

  1. In the Intel® Quartus® Prime Pro Edition, click File > New Project Wizard to create a new Quartus Prime project, or File > Open Project to open an existing Intel® Quartus® Prime project. The wizard prompts you to specify a device.
  2. Specify the device family Agilex (I-series) and select a device that meets all of these requirements:
    • Transceiver tile is F-tile
    • Transceiver speed grade is -1 or -2
    • Core speed grade is -1 or -2 or -3
  3. Click Finish.
Follow these steps to generate the F-Tile CPRI PHY Intel® FPGA IP hardware design example and testbench:
  1. In the IP Catalog, locate and select F-Tile CPRI PHY Intel® FPGA IP. The New IP Variation window appears.
  2. Specify a top-level name <your_ip> for your custom IP variation. The parameter editor saves the IP variation settings in a file named <your_ip> .ip.
  3. Click OK. The parameter editor appears.
  4. On the IP tab, specify the parameters for your IP core variation.
  5. On the Example Design tab, under Example Design Files, select the Simulation option to generate the testbench and the compilation-only project. Select the Synthesis option to generate the hardware design example. You must select at least one of the Simulation and Synthesis options to generate the design example.
  6. On the Example Design tab, under Generated HDL Format, select Verilog HDL or VHDL. If you select VHDL, you must simulate the testbench with a mixed-language simulator. The device under test in the ex_<datarate> directory is a VHDL model, but the main testbench file is a System Verilog file.
  7. Click the Generate Example Design button. The Select Example Design Directory window appears.
  8. If you want to modify the design example directory path or name from the defaults displayed (cpriphy_ftile_0_example_design), browse to the new path and type the new design example directory name (<design_example_dir>).
