2.3.1. I/O Assignments with the Intel® Quartus® Prime Assignment Editor

You can assign all instance-specific settings and constraints through the Intel® Quartus® Prime Assignment Editor. You can filter assignments by node name or category.

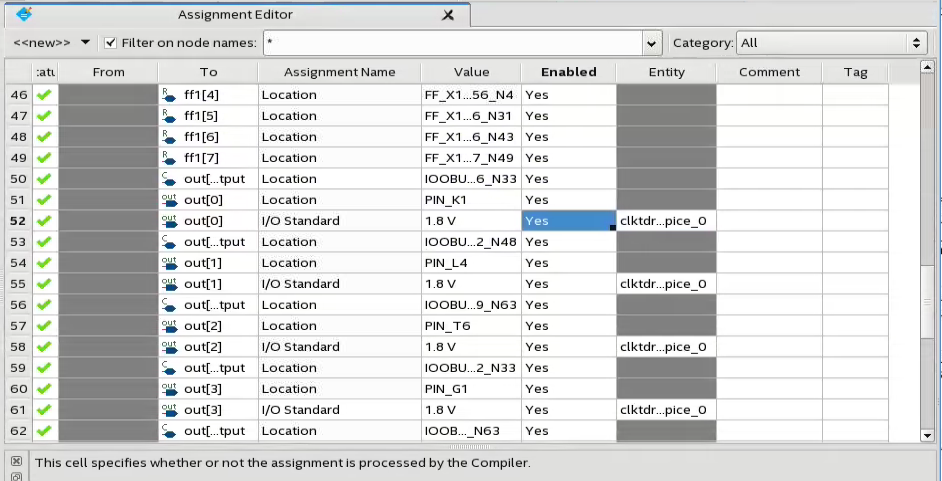

Figure 4.  Intel® Quartus® Prime Assignment Editor
