12.1.2. F-Tile DisplayPort PHY IP Analog Settings

Manual analog settings are not available or applicable as part of the F-Tile DisplayPort PHY IP configuration.

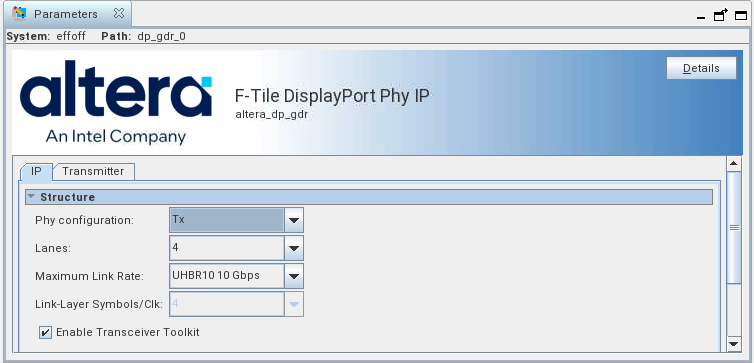

Optimum analog parameters for each link are automatically selected as part of DisplayPort link-training. If you require further link quality debug, you can access the transceiver analog parameters directly by turning on Enable Transceiver Toolkit in the Tx and connecting the System Console to your design via JTAG.
Enable Transceiver Toolkit
